WHOLE AIRPLANES For Sale:

1981 Varga 2180  VAC 172-81  180HP.
785 total time since new.  King KX 170B w/VOR , Apollo SL-40 digital comm,  King KT 76A XPNDR w/encoder, Lowrance Airmap 1000,  NDH and all logs.  Paint is 10/10,  Interior 9/10,  has 2 place intercom. Annual due 11/2014  Beautiful plane. Same owner last 9 years. New battery.



Have lots of photos.  Located at KFGX in Maysville, KY.
Asking $53,500. Call 606-748-7170 or e-mail: mitch@ratsclub.com

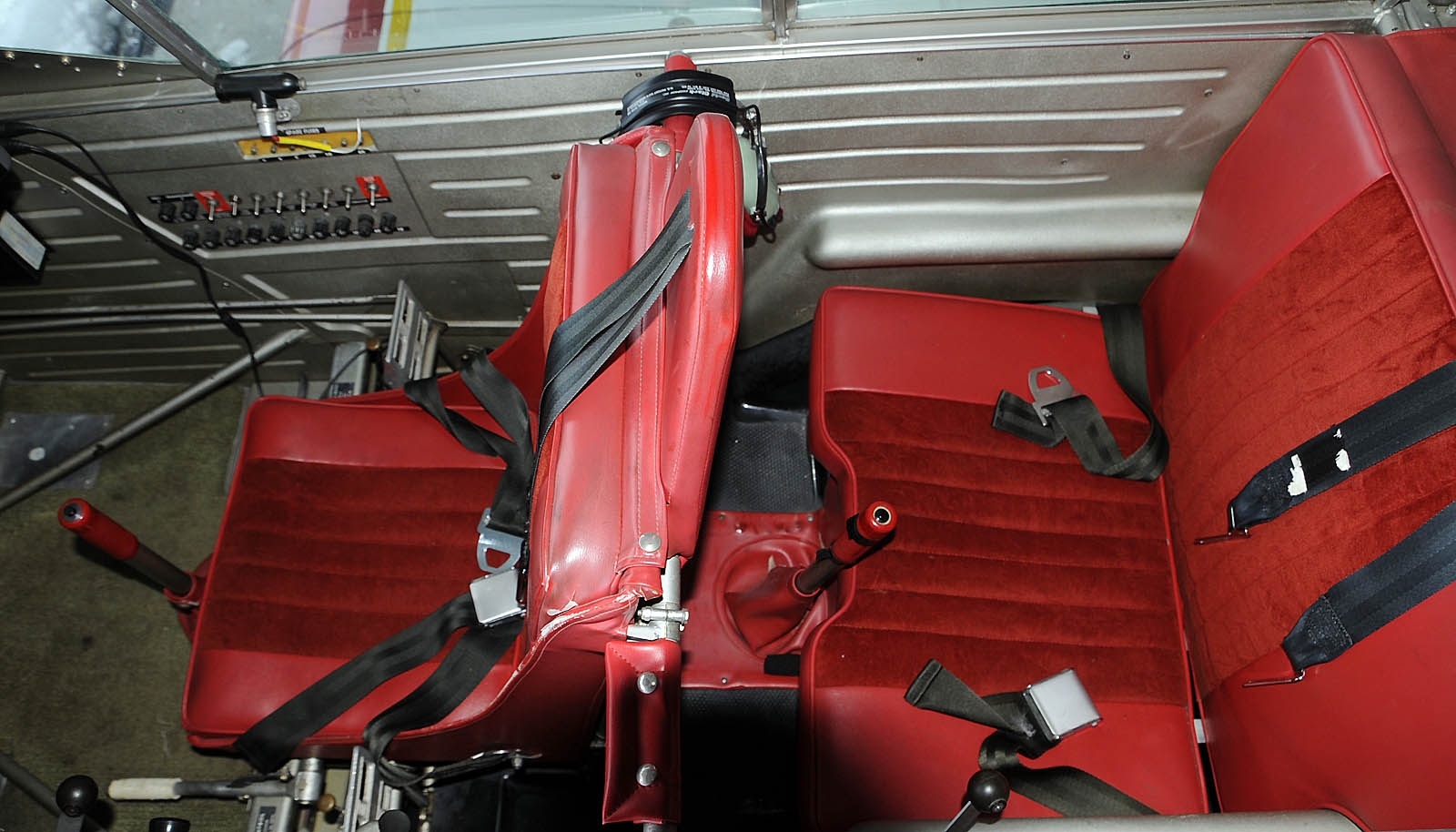

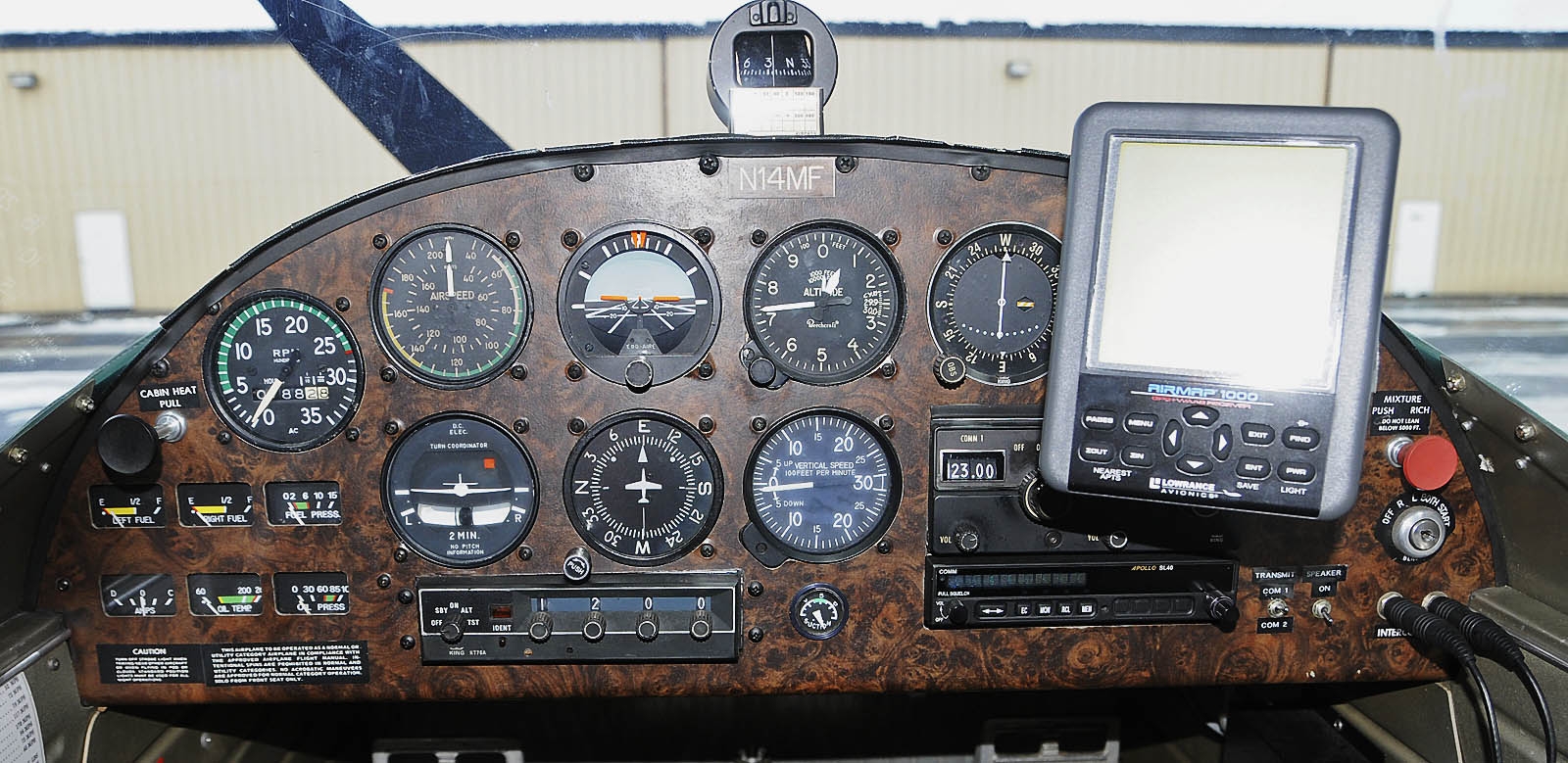

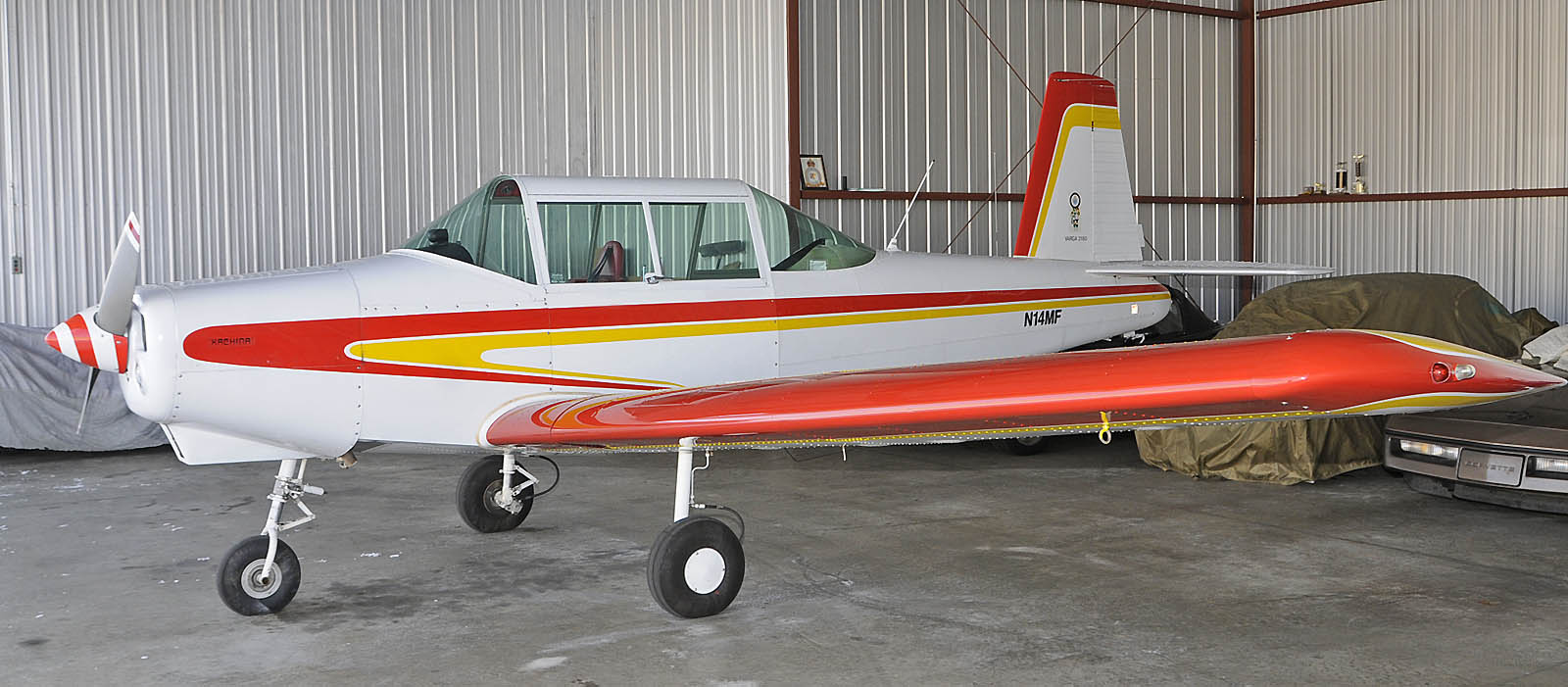

Varga side.jpg (173653 bytes)   Varga interior.JPG (629751 bytes)   Varga panel 2180.JPG (740933 bytes)

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

VARGA 2150A $36,000 FOR SALE 79 Varga Kachina 1400tt IFR clean very nice Garmni 250XL past owner was AP IA, annual current Contact Jay Anding, End User - located Bryan, TX USA Telephone: 979-229-1632 Posted April 26, 2013

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------




Was $56,000... Now $45,000



-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

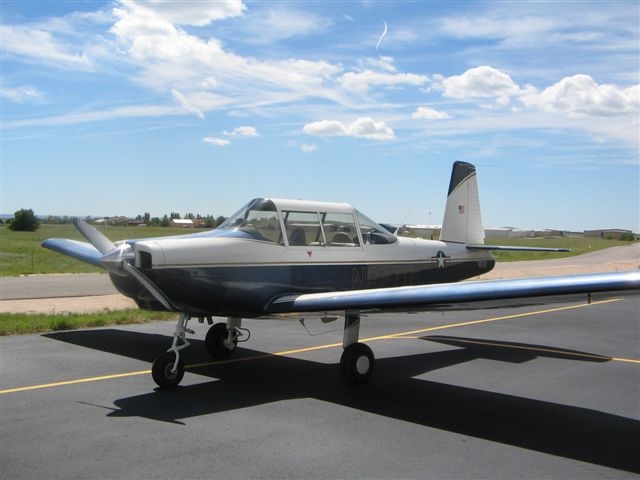

Aircraft 101.JPG (129730 bytes)

Varga N62TD

1979 Varga 2150: Better than new, custom glass panel aircraft. New military paint scheme, new leather interior, new glass, many other extras- over $100,000 invested. 160HP, 1,694 TTSN, 52 since engine OH, Aspen EFD1000 Pro PFD, Garmin SL30, Garmin GTX 327, KMD 250 GPS/MFD, FP-5 Fuel Flow/EGT, PS Engineering Inter com , Davetron M800 Clock/Voltmeter, $59,000 NDH.

Exterior: Paint: T6 Texan II military paint scheme, Propeller: New custom paint scheme, Fairings: New custom wing root fairing; custom gear fairings

Varga panel.JPG (3270709 bytes)

Interior: New dove grey leather interior, new carpets and side panels, All new glass, Military stick grips with push to talk and radio flip/flop switches, Custom engraved circuit breaker panel and matching placards

Remarks: This aircraft is as close to new as is possible, no detail overlooked ( com plete build book com piled to show progress) , New annual com pleted in April, All ADs com plied with including vertical stabilizer

Contact: Trammell Davis 719-576-8207 evenings

trammelldavis@comcast.net  for detailed list of all improvements, many not listed above

---------------------------------------------------------------------------------------------------------------------

For other Vargas for Sale... see Trade-A-Plane...   ;-)



PARTS OF PARTS OF AIRPLANES For Sale:

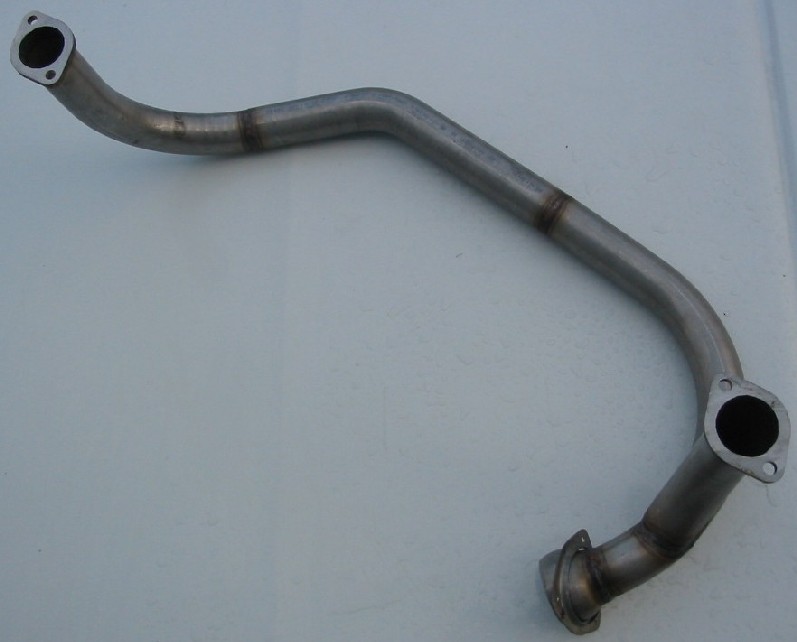

manfold_rh_varga_2.JPG (55890 bytes) Right Hand Exhaust Manifold 1 each $375 plus shipping.






bushing_wing.JPG (8204 bytes)  2001-3 Wing Joint Bushings $5.00 each, 100 available



bearing_rodend.JPG (10721 bytes)  Used REB3N2 Rod End Bearings: Call for info... (480) 201-6553

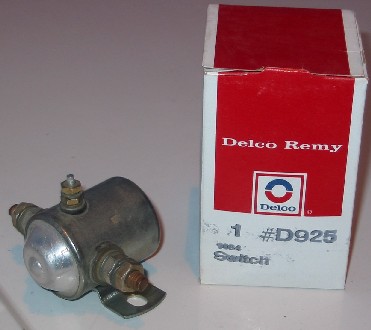

The D925-1464 Starter Relay used on a Varga is no longer available...



Note that, though this is a 6V relay, it is designed to be used on a 12V system.

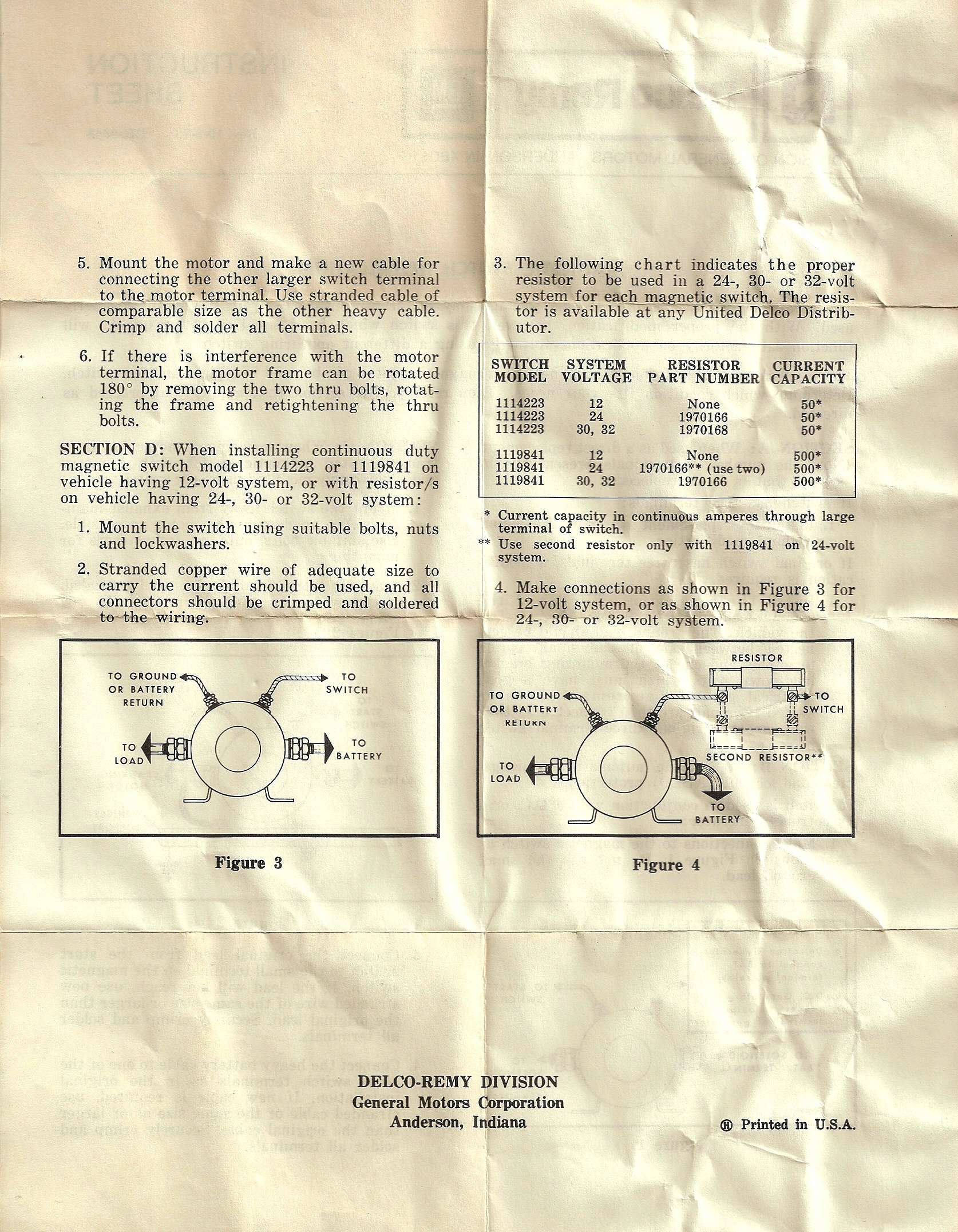

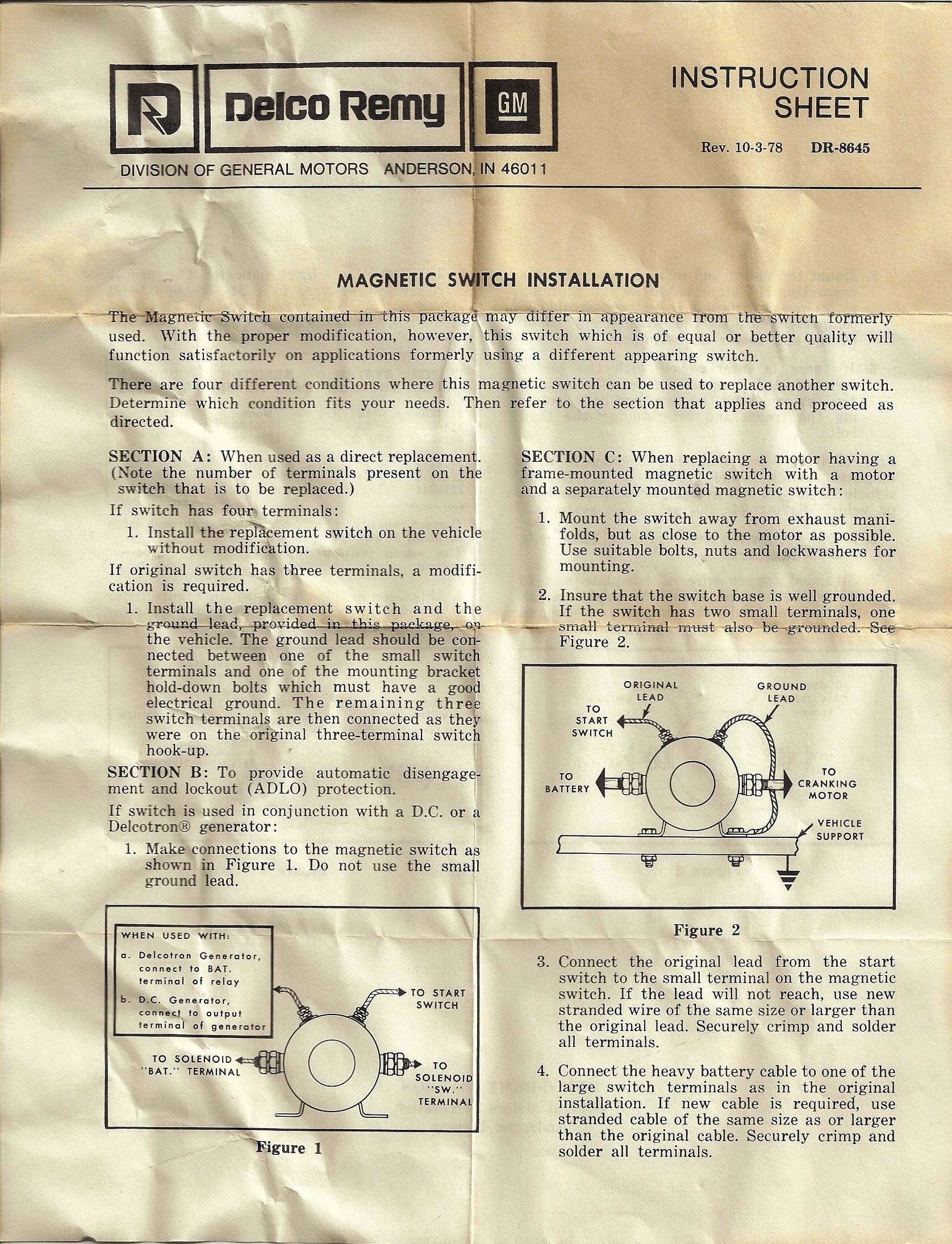

dr925_1464_1.jpg (2324150 bytes) dr925_1464_2.jpg (2126625 bytes) Instructions contained in D925-1464 Starter Relay package



wpe2.jpg (2375 bytes) Though not FAA approved for a Varga, a Cole Hersee 24041 may be an acceptable substitute for the Delco Remy starter relay.

www.colehersee.com



bushings.JPG (30643 bytes)   Stabilizer Bushing; 10 each per aircraft: $4.56 each ($45.60/10). Limited quantity available.



At about $1 an inch, it was expensive but I found a supplier for NAS40-10 hinge (aileron and flap half) and bought some. I also have a small quantity of NAS40-6 hinge (wing half). It will be available until I run out.  Just call and let me know which hinge you need.



Years ago, somebody sent 3 boxes of the 12-24 screws that are used to plug the 2 filler holes at the top of each landing gear. 12-24 screws are an oddball size so, if you need and cant find any of these screws, let me know how many and Ill send them to you.

For any item above contact:



Max Bishop

2062 West Gila

Chandler, Arizona 85224

(480)201-6553 (cell)

(480) 786-3578 (home)

(480) 891-6152 (work)

email:    mbishop5@cox.net   or

             max.bishop@boeing.com

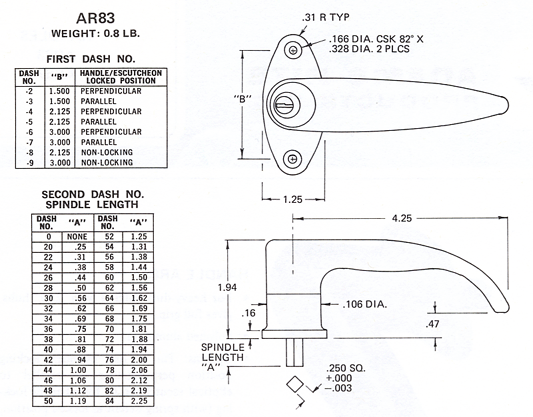

Adams Rite made the early (up to VAC151) Varga canopy handles:





Part Number

AR83

Name

Handle

Description / Specification

For heavy-duty latches with .250" hubs, gives full grip.

Polished aluminum.

Options: Pin or disc cylinder, locking position perpendicular or parallel to eliptical escutcheon or freewheeling locking (with spring detent in locked position, add "F" suffix for freewheeling), other spindle lengths, no spindle.

With pin cylinder standard keying T4619, key furnished. Other keying optional.



Adams Rite Aerospace


4141 North Palm Street
Fullerton , CA 92835 USA
Telephone : (714)278-6500
Fax : (714)278-6510

http://www.ar-aero.com/default.asp





Varga/Shinn/Morrisey Windshield and Windows:



AIRCRAFT WINDSHIELD

10871 KYLE ST
LOS ALAMITOS , CA   90720

 (562) 430-8108





Century Spring made most of the springs used on the Varga:



The following springs are available from them. Contact

information for Century is listed below:



#10 Nose Wheel Steering Spring: 2 each per Model 2180.

#56 Nose Wheel Steering Spring: 2 each per Model 2150A.

#82 Rudder Return Spring: 2 each per aircraft.

#128 Flap Return Spring: 2 each per aircraft.

#139 Upper Elevator Trim Spring: 1 each per aircraft.

#143 Lower Elevator Trim Spring: 1 each per aircraft.

D-108 Landing Gear Spring; cut to 10", closed and ground: 3 each per

aircraft.

D-125 Landing Gear Spring; cut to 10", closed and ground: 2 each per Model

2150A : 3 each per Model 2180

S-312 Exhaust Manifold to Muffler attachment Spring: 6 each per aircraft.



ALEMITE 3019 Drive Fitting:  Grease "zerk" for all torque links...

http://www.alemite.com/



3019 Str. 15/32" 5/32" 1/8" No ball check
3019

http://www.alexgs.com/product/alemite-3019.html





Century Spring Corp.


222 East 16th Street
Los Angeles, CA 90015
Toll Free: 800.237.5225
Ph: 213.749.1466
FAX: 213.749.3802


Email: info@centuryspring.com

Web site: www.centuryspring.com



Muffler Support Torsion Spring:

4 each are required per aircraft.

Richard Vickers currently has sets of 4 springs available at $30 per set, postage included. Richard has also provided the following vendor and part number information for those who would like to know where he has them made...



P/N: 125-Varga

James Spring & Wire Company

6 N. Bacton Hill Rd.

PO Box 878

Frazer, PA 19355

Telephone: (610) 644-3450



Email Richard at VickersRS@aol.com for more information.





Varga Battery Solenoid from Grainger Industrial Supply

  http://www.grainger.com/Grainger/wwg/start.shtml

DC Power Solenoid,12V,Amps 80

DC Power Solenoid, Coil Voltage DC 12, Amps 80, Coil Type Isolated, Contact Form SPNO, Coil Termination #10-32 UNF-2A Thread, Contact Termination 5/16-24 UNF-2A Thread, Contact Material Copper, Duty Cycle Continuous, Mounting Base Std. Bracket, Series 70, Enclosure Dust Resistant, Standards UL 538 Recognized
Grainger Item # 6C028
Price (ea.) $46.50 (price as of November 2013)
Brand WHITE-RODGERS
Mfr. Model # 70-111224-5
Ship Qty. 1
Sell Qty. (Will-Call) 1
Ship Weight (lbs.) 0.9
Usually Ships** Today
Catalog Page No. 305  catalog

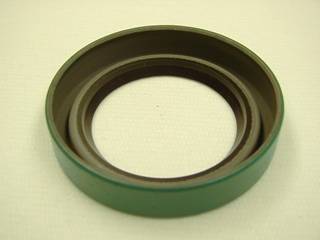

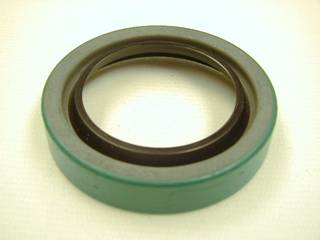

Landing Gear Seal: Was Chicago Rawhide  CR 18591... now...



Product Datasheet

Stock Number

18591

Description

LDS & SMALL BORE SEAL

Lip Code

Nitrile (Lip Code: R)

Type/Style

HM21





Inches

Shaft

1.875

Bore

2.623

OD

2.627

Width

0.25

Weight

0.06

UPC

00085311020206

Speedi-Sleeve

99187

WastWatcher

18591

Bore-Tite on O.D.

Y

Product Images:

Note: photos are representative of construction.

http://www.ebatmus.com/search.epl?Query=18591



SKF USA, INC

890 Forty Foot Road

PO Box 352

Landsdale, PA19446-0352





Shoulder Harness/Inertial Reel:



The Varga shoulder harness/inertia reel vendor was a company called American Safety. If you need replacement parts, they are still in business as AmSafe and may help you.



AM SAFE

1043 N. 47th Avenue
Phoenix, Arizona 85043
602 850 2850
602 850 2812 (fax)



http://www.amsafe.com/

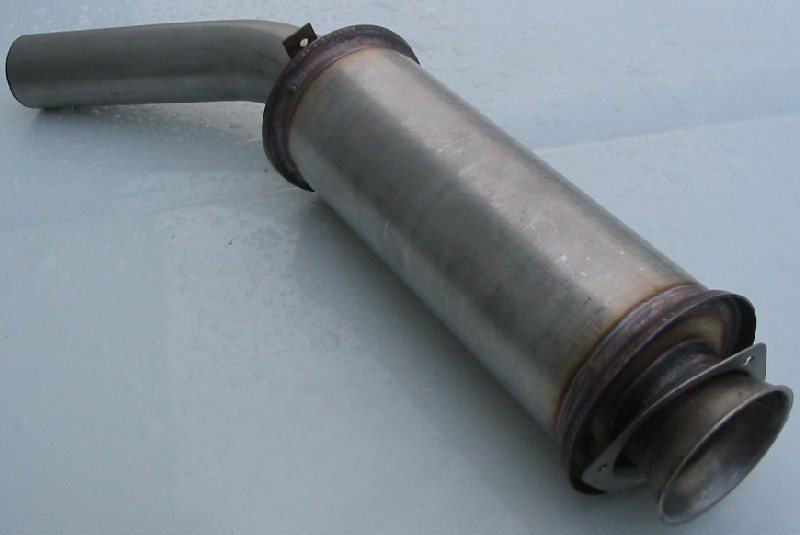

If you need exhaust manifolds and/or mufflers, here is a source.

Dawley Corporation
140 Industrial Drive
Burlington , WI 53105

800-338-5420
262-763-3113
Fax 262-763-3735

Email: info@dawley.net - General Information

          sales@dawley.net - Sales Information

          shipping@dawley.net - Shipping Information



FUEL SYSTEM COMPONENT REPAIR:

INSTRUMENT REBUILD aka FUELSENDERS.COM



Paul Malkasian

22019 East Cloud Road

Queen Creek, Arizona 85142



(480) 888-9755

mlmalkasian@att.net





Gascolator/Fuel Strainer:

The Varga gascolator was an Edo-Aire product with G199-105 Part Number (I think)...

A company called Sigma Tek now appears to be making the same or similar gascolator...



Sigma Tek, Inc.
1001 Industrial Rd.
Augusta, KS 67010
Main: (316) 775-6373
Fax: (316) 775-1416
E-Mail: requestinfo@sigmatek.com



http://www.sigmatek.com/pages/prod_description/PD_ACC_strainer.html



+

G199-105 Fuel Strainer

G199-105 Fuel Strainer

The G199-105 fuel strainer filters out contaminants such as particulate matter from the fuel line. Contaminants accumulate in the bowl and are easy to identify. Cloudiness in the fuel indicates that there is water in the system and can also be detected. The strainer can be drained through a petcock to purge the fuel line of water. A bypass valve allows continued flow even when the filtering screen is clogged, a handy feature in an emergency.

Specifications
Options
Physical Characteristics
G199-105 side view
G199-105 top view
Height:
5.00" (max)
Width:
2.92" (max)
Depth:
2.38" (max)
Weight: 0.8 lbs.
Port Size: 3/8" NPT
Dash No.
Pressure (psig)
Dash No.
Pressure (psig)
Basic
30
-5
30
-1
30
-6
30
-2
50
-7
30
-4
30
-8
30

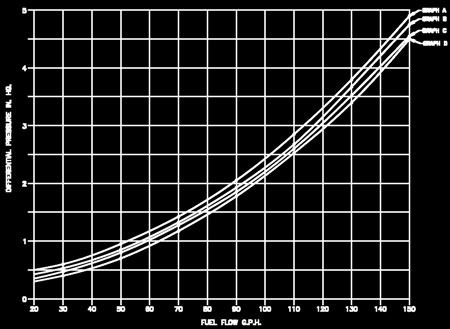

Fuel Flow Characteristics
Fuel Flow Characteristics
Curve Filter Ass'y Screen
A 33-199-31 Micronic (obsolete)
B 33-199-916 58A332-001 (40 S.S.)
C 33-199-915 58A331-001 (73 S.S.)
D 33-199-909
33-199-912



Miscellaneous Parts, Tools or Services



12-24 Screws are still available for Landing Gear Hydraulic Fluid and Lubrication holes:

I have 3 boxes of the 12-24 screws that are used to plug the 2 filler holes at the top of each landing gear. 12-24 screws are an oddball size so, if you need and cant find any of these screws, let me know how many and Ill send them.



Stabilizer Bushings:

I still have lots of horizontal and vertical stabilizer hinge bushings left if you need them



Aileron & Flap Hinge:

The Varga uses NAS40-6 hinge at the wing and NAS40-10 hinge at the aileron and flap.  I have a couple of 6 lengths of NAS40-10 hinge. I don't have any dash 6 hinge but it is narrower and the dash 10 hinge can be cut down to the dash 6 width...



Varga Stuff:

http://www.lasergraphicsbygreg.com/Key_Chain/key_chain.html

http://www.lasergraphicsbygreg.com/Stamps/stamps.html







VG-21 Squadron Patch:



  Purchase from Doug Stumpf for $10.00 per patch at ddstumpf@yahoo.com



Manuals:

Essco Aircraft
378 S. Van Buren Ave.
Barberton Ohio 44203

Location Hours (EST/EDT):
Monday through Friday: 8:00AM to 4:45PM

Phone Hours: (EST) Monday through Friday: 8:00AM to 4:45PM
Phone: (877)-318-1555 (toll free)
Fax: (330) 644-0886

Fax: (888) 249-4165 (toll free)

sales@esscoaircraft.com

http://search.esscoaircraft.com/search?keywords=varga



Parts, assemblies and installations that can't be found must be made...



Click Here for Varga Data that may help to make those parts...
