VG-21 Squadron

HOME

Service Instructions:

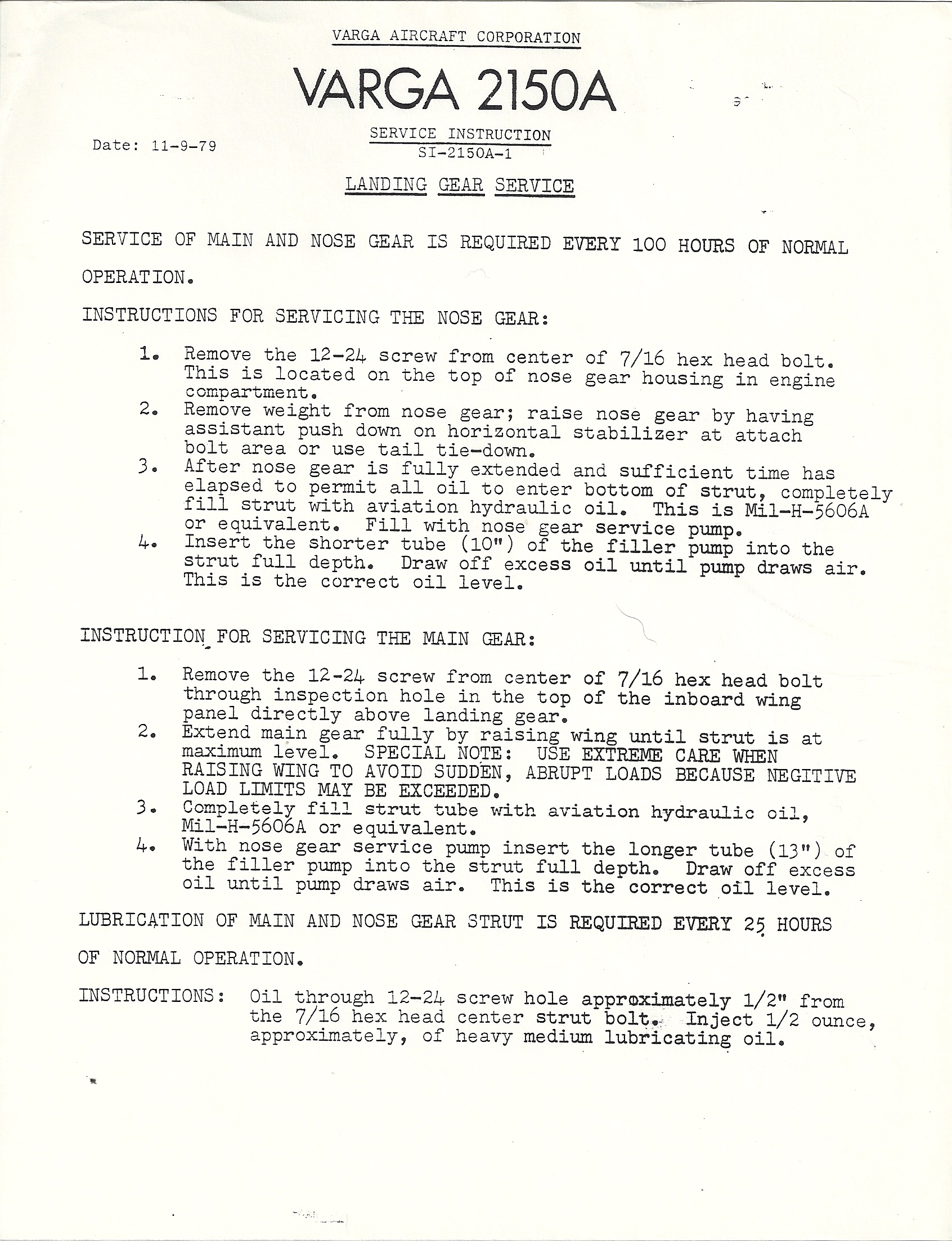

SI-2150A-1: Landing Gear Service

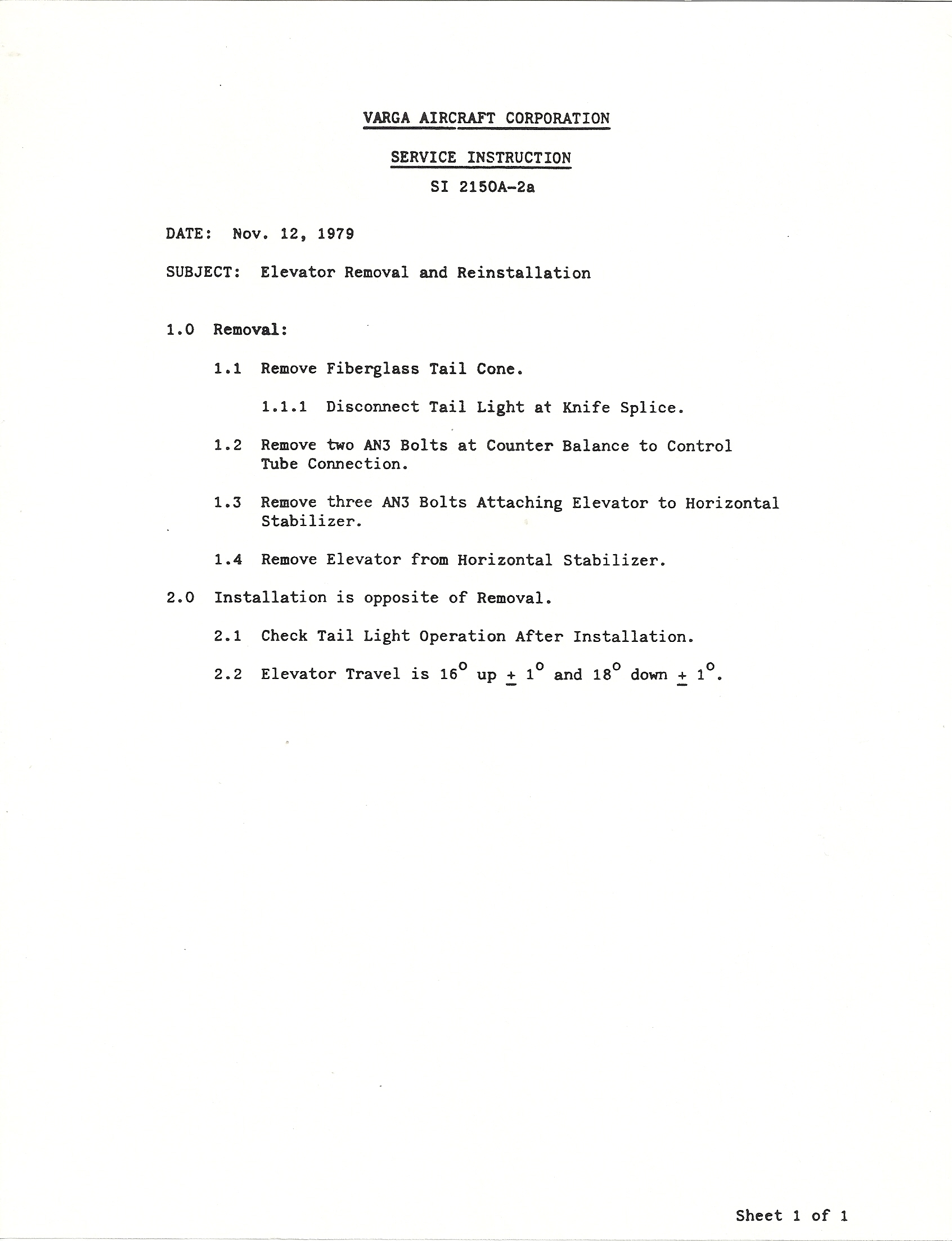

SI-2150A-2a: Elevator Removal and Reinstallation

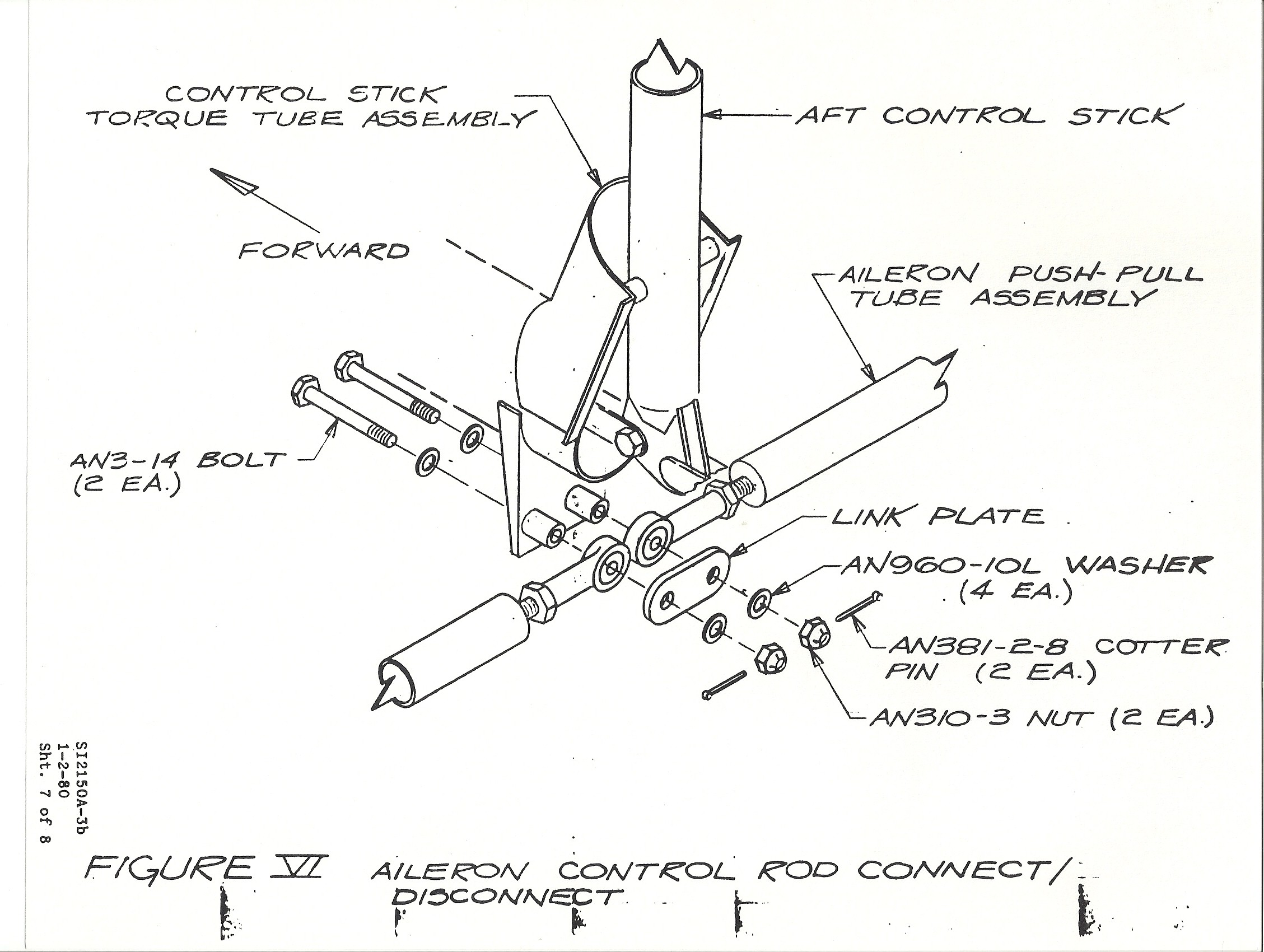

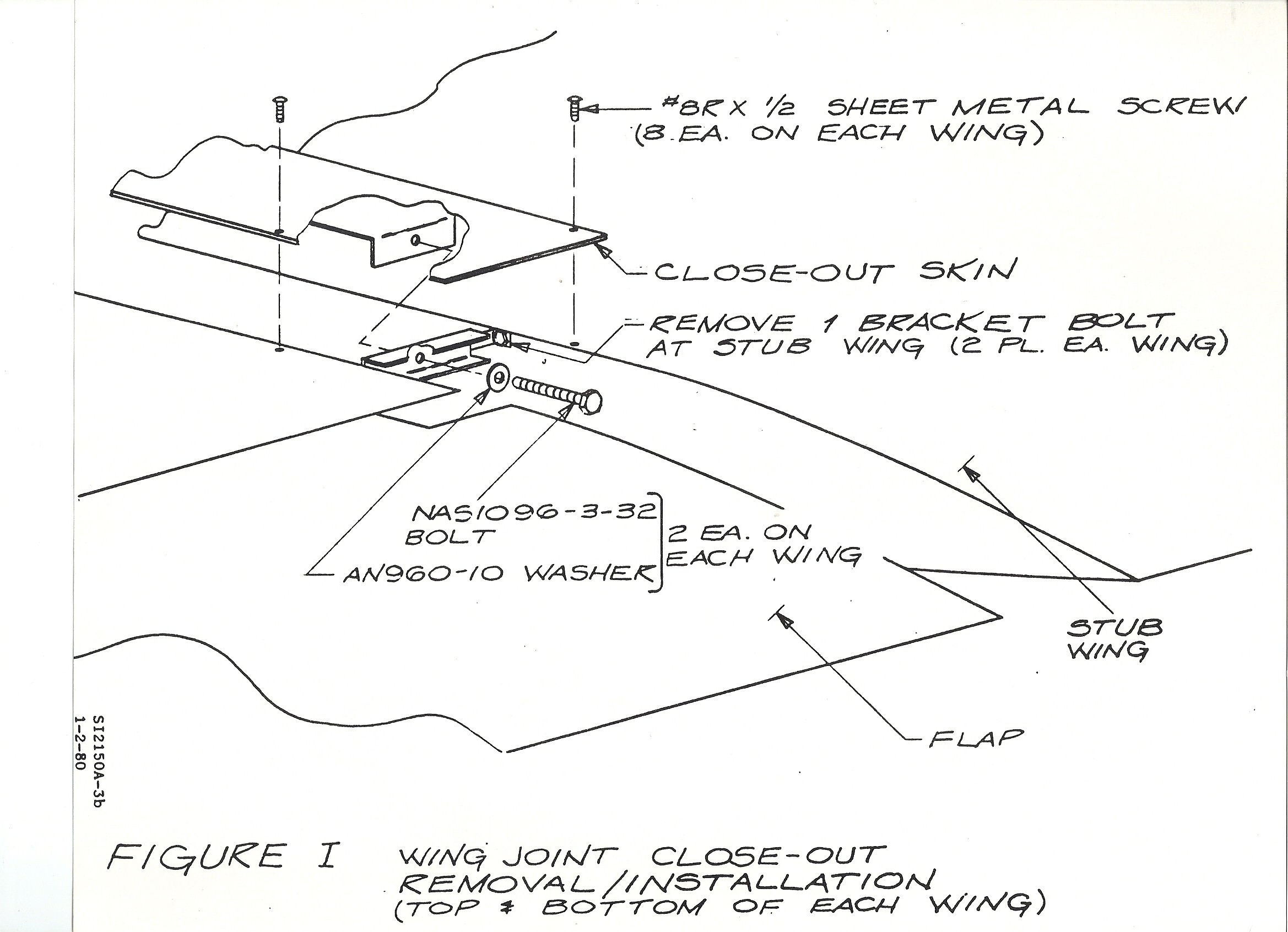

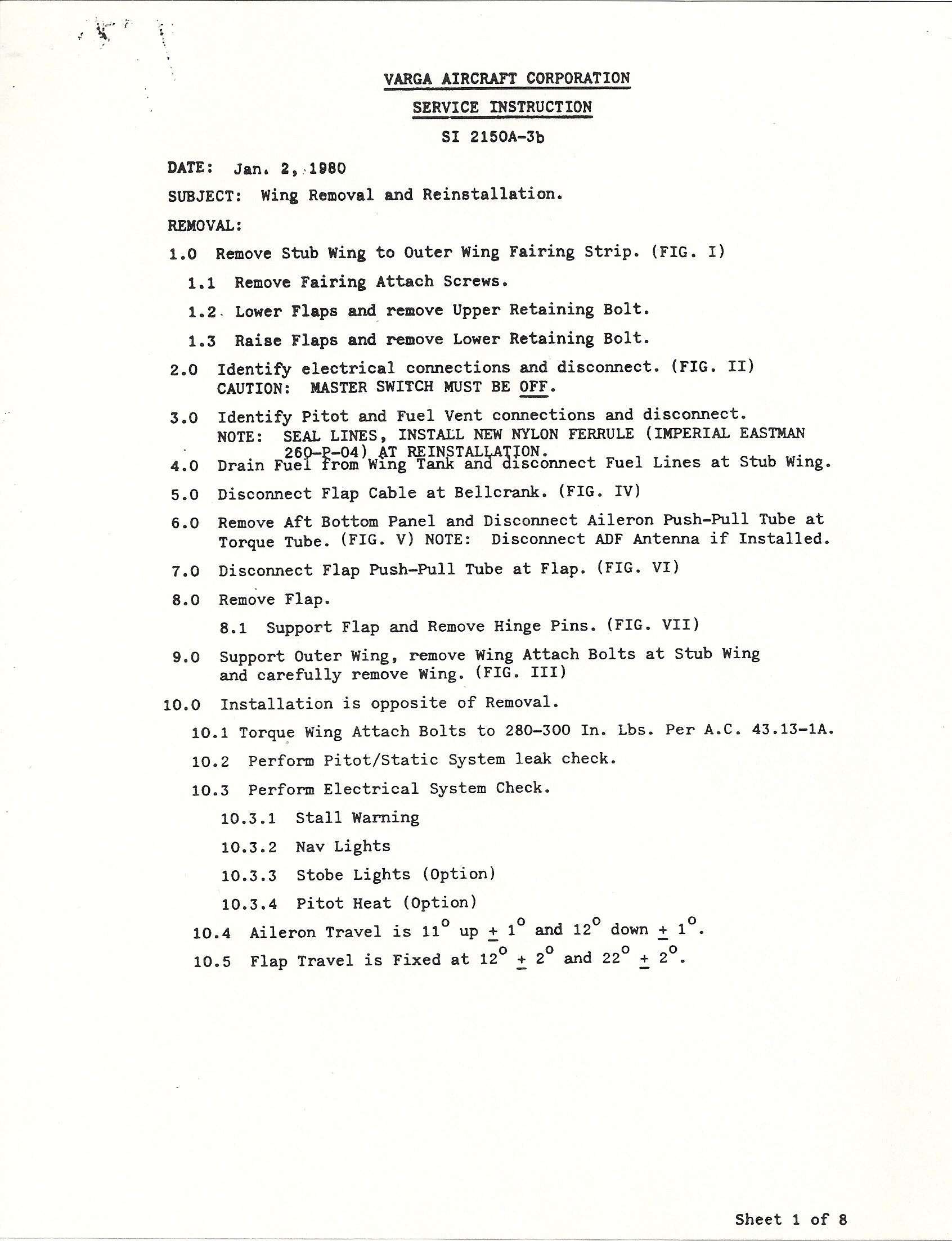

SI-2150A-3b: Wing Removal and Reinstallation

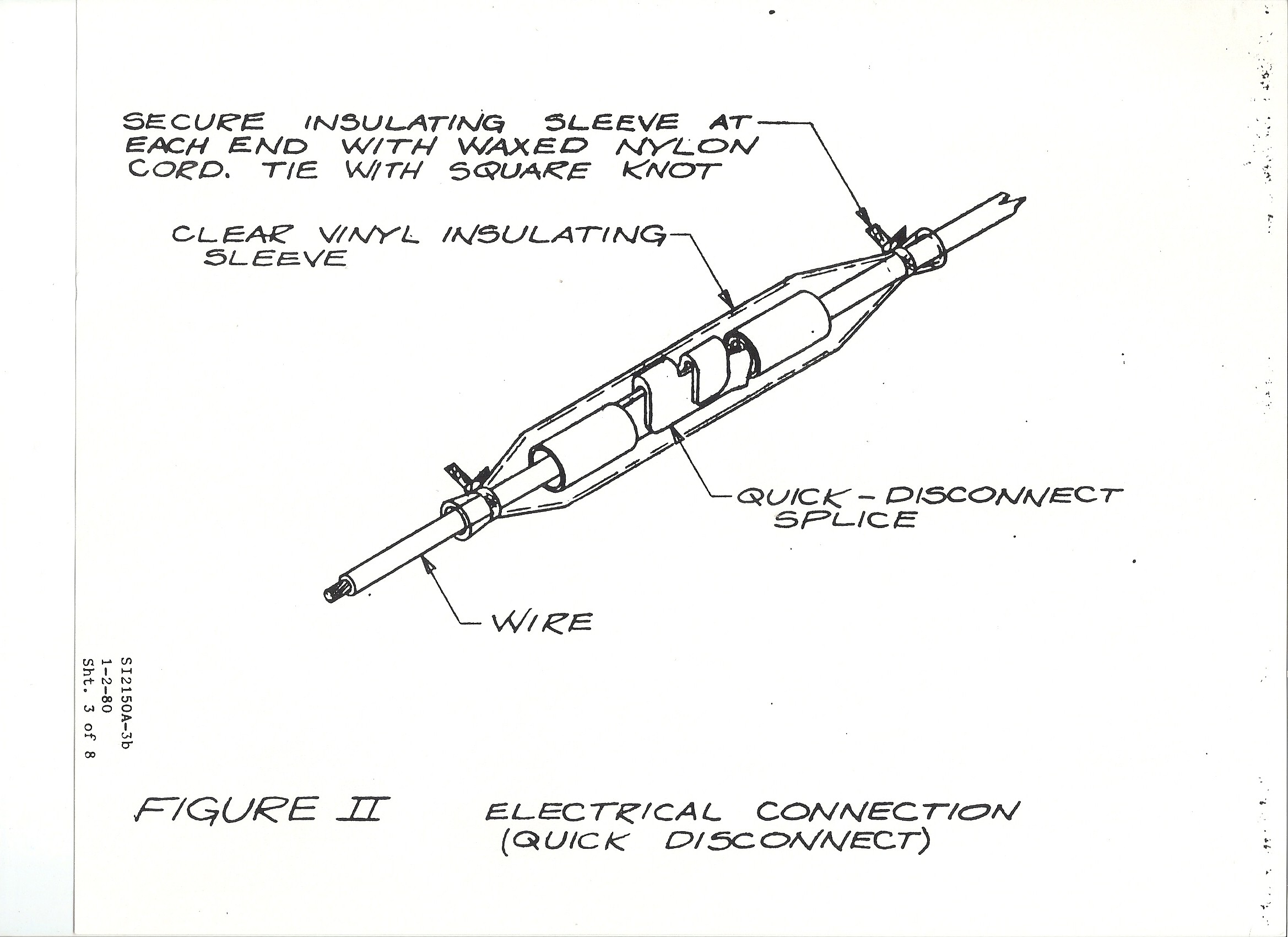

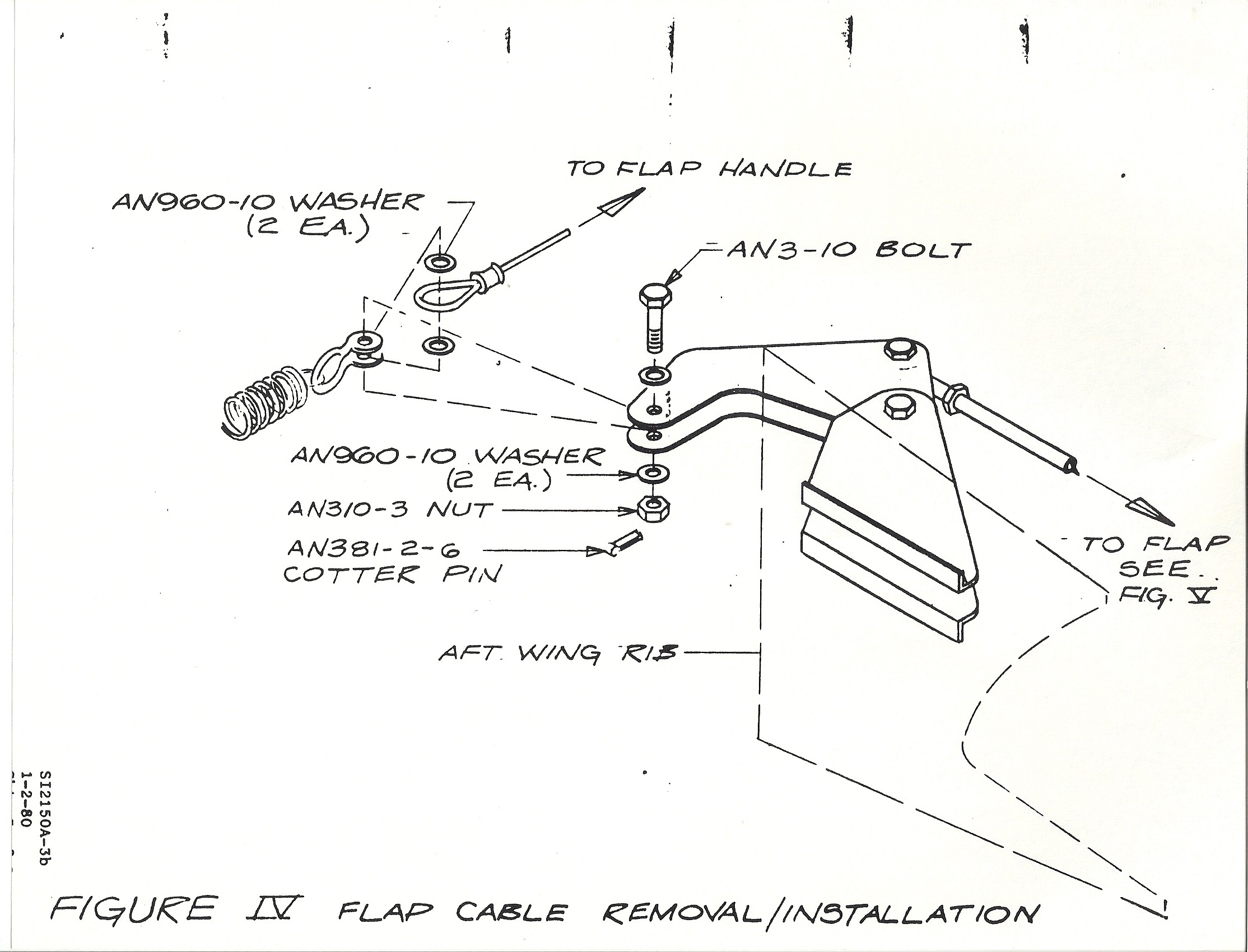

si_2150a_3b_2of5.jpg (423553 bytes)   si_2150a_3b_3of8.jpg (356136 bytes)   si_2150a_3b_4of8.jpg (517911 bytes)   si_2150a_3b_5of8.jpg (430100 bytes)

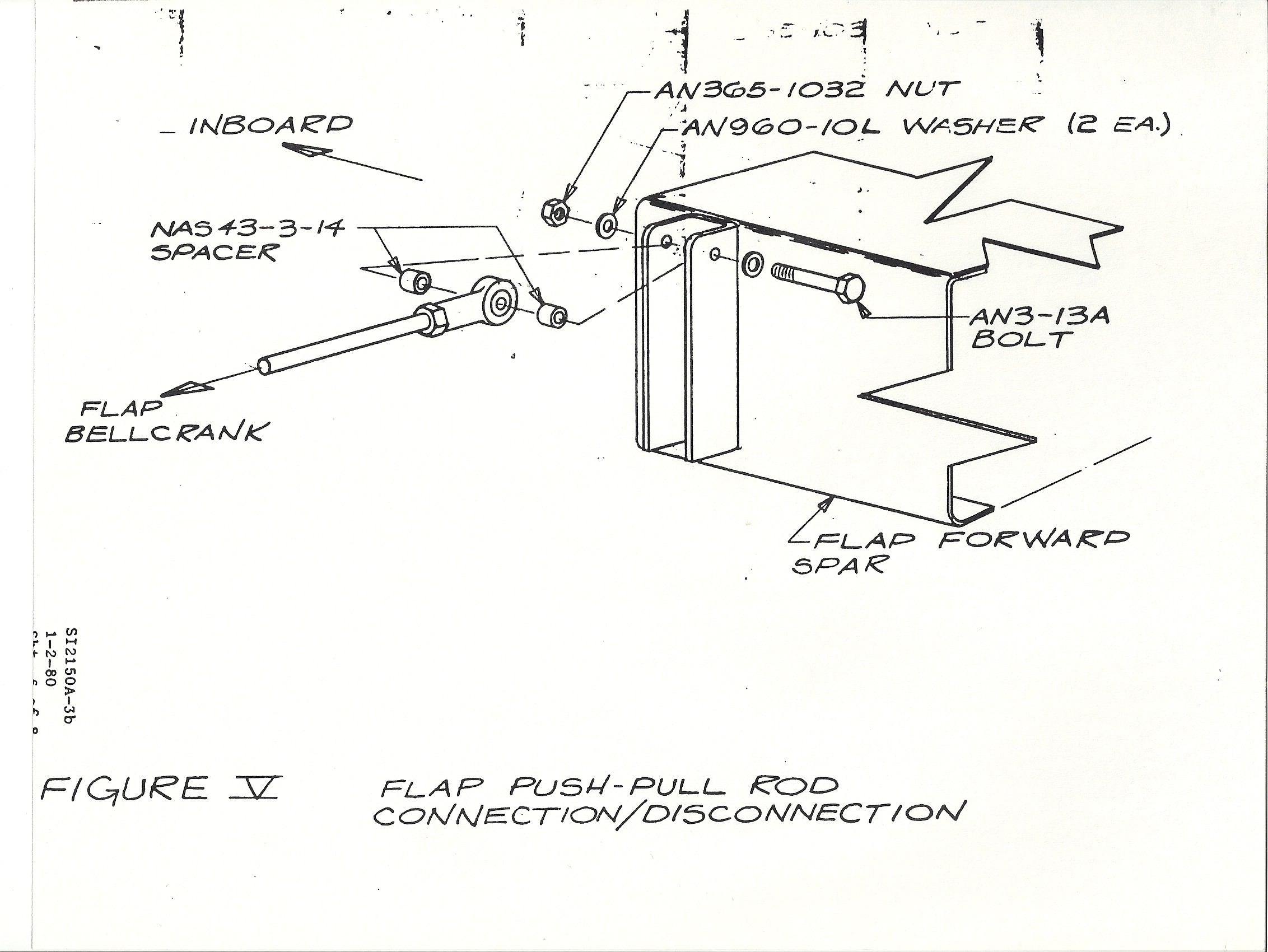

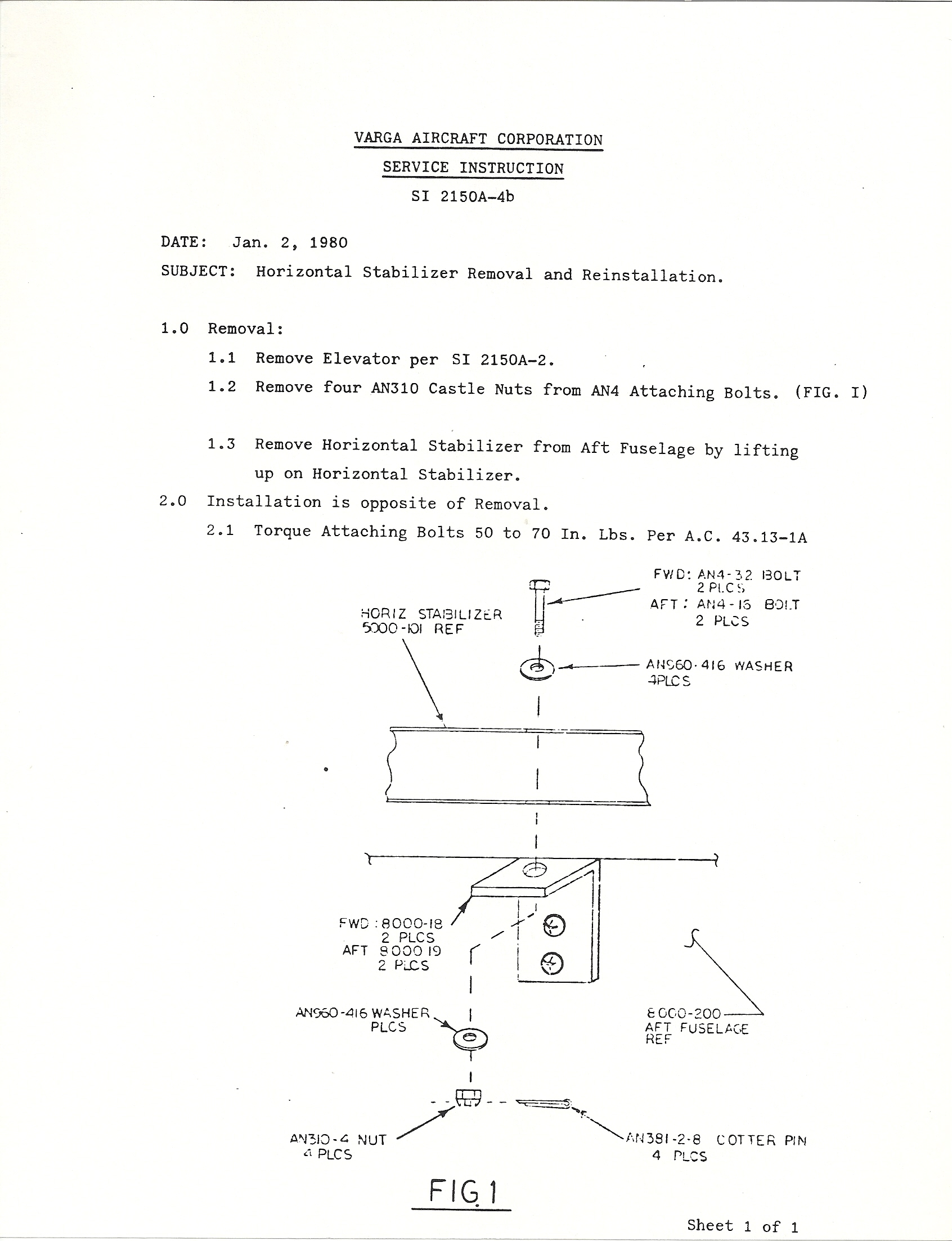

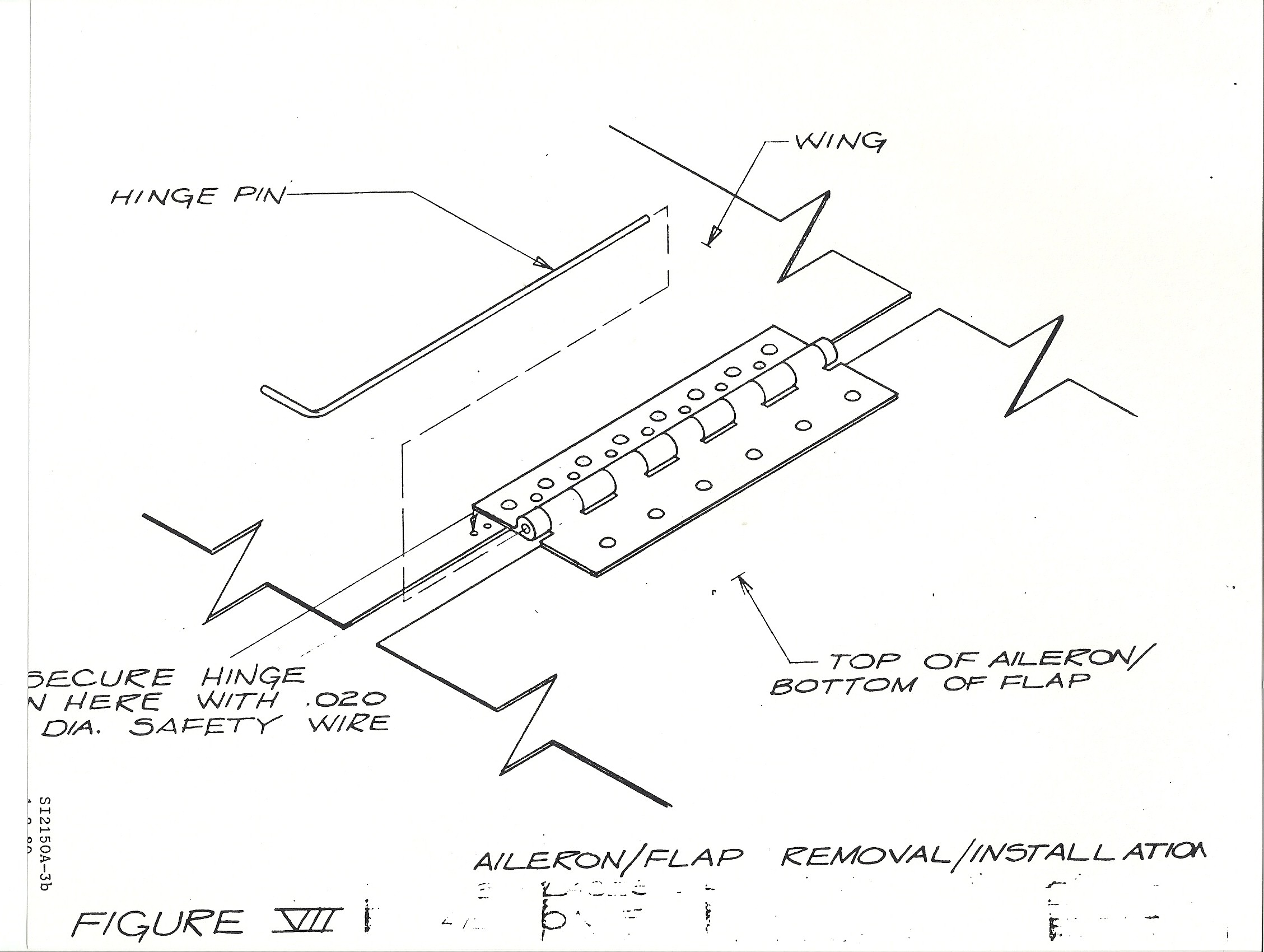

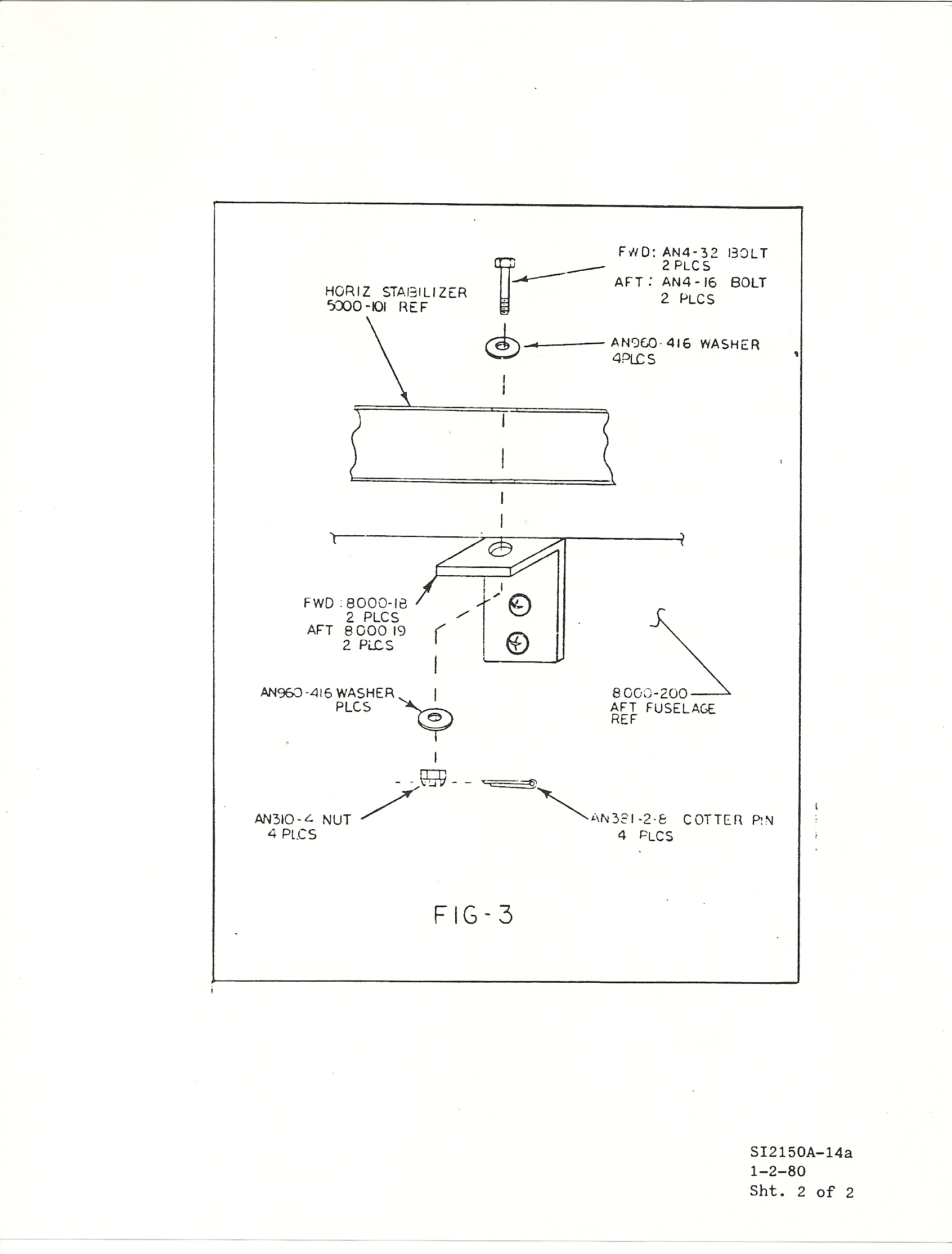

SI-2150A-4b: Horizontal Stabilizer Removal and Installation

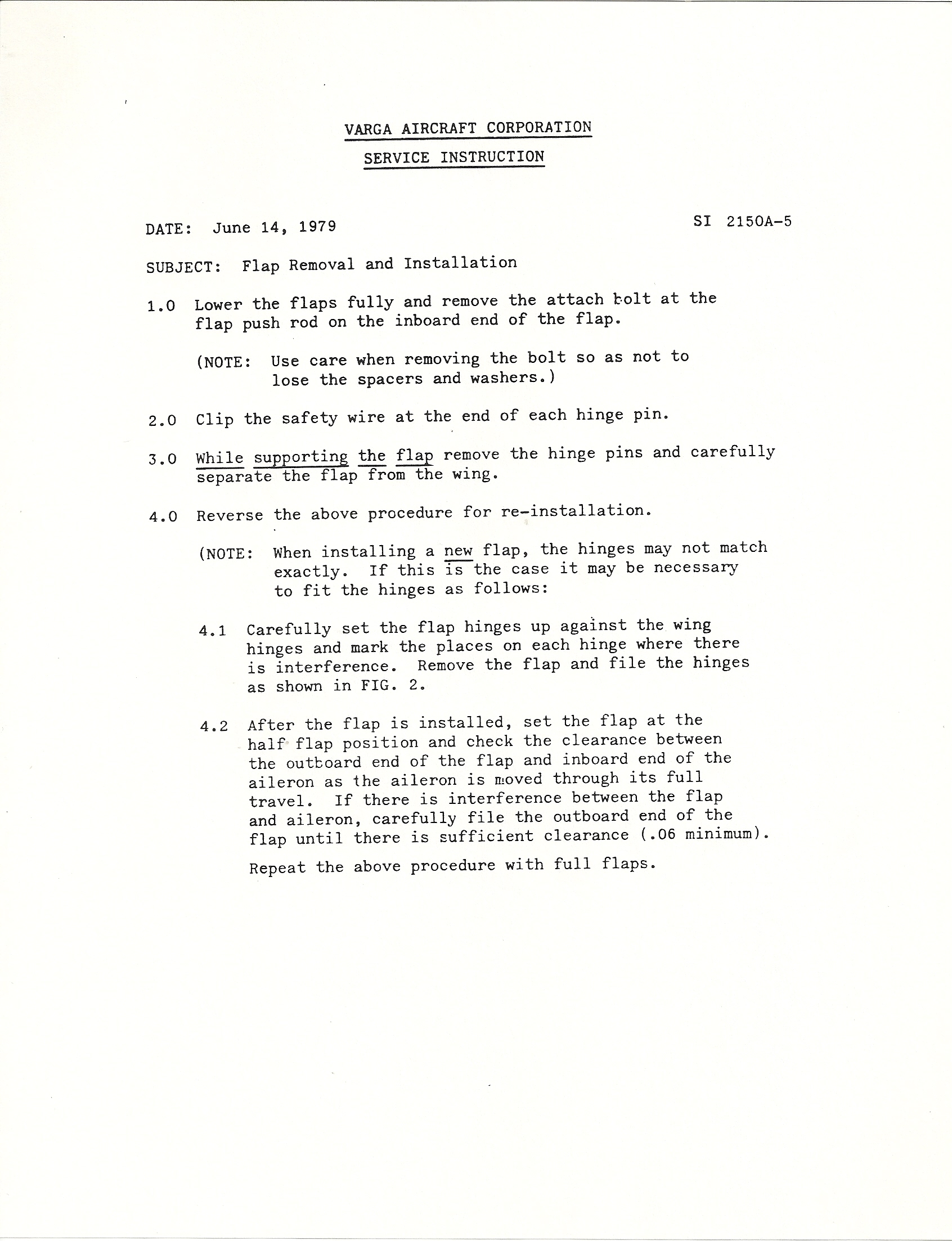

SI-2150A-5: Flap Removal and Installation

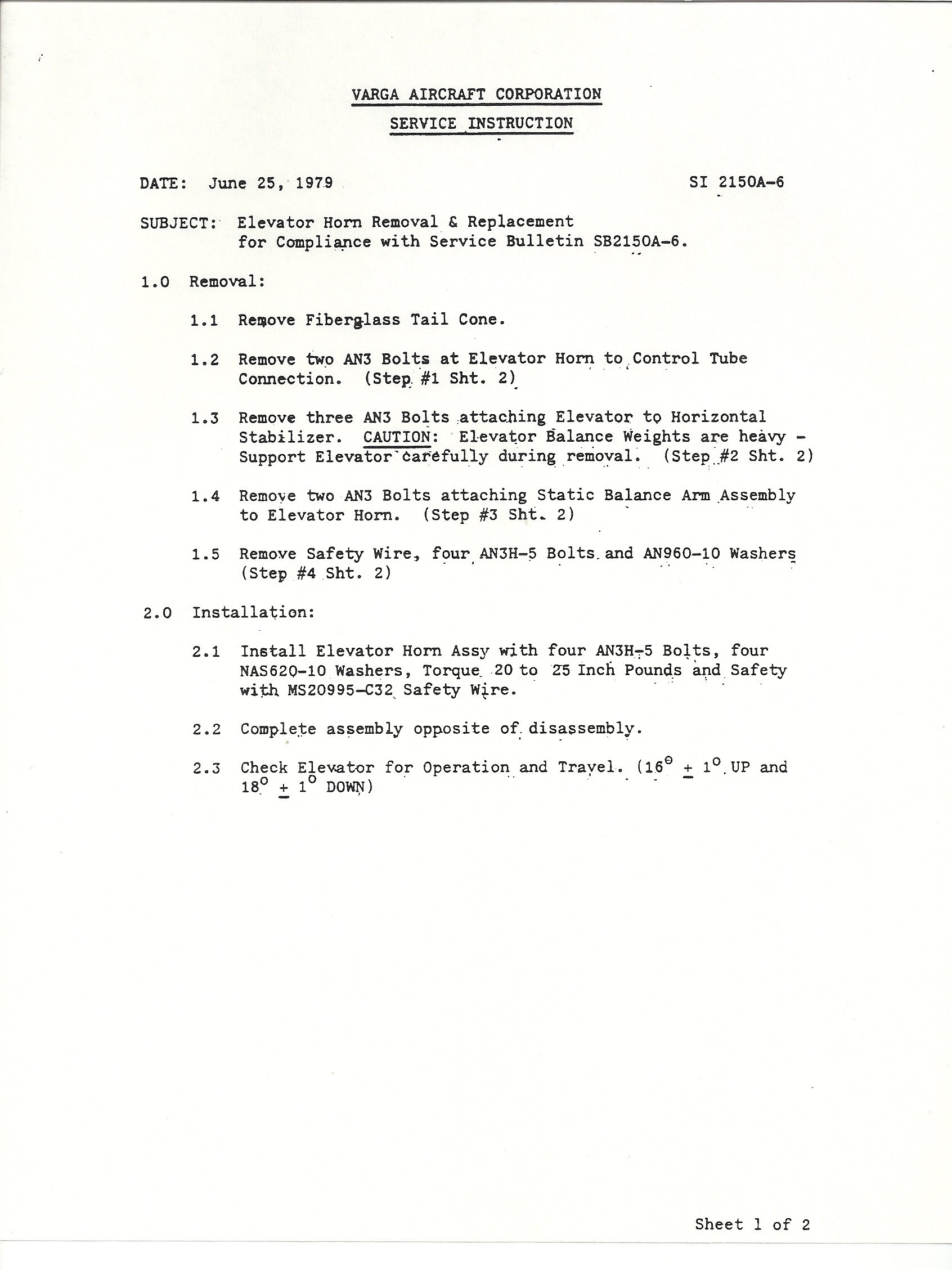

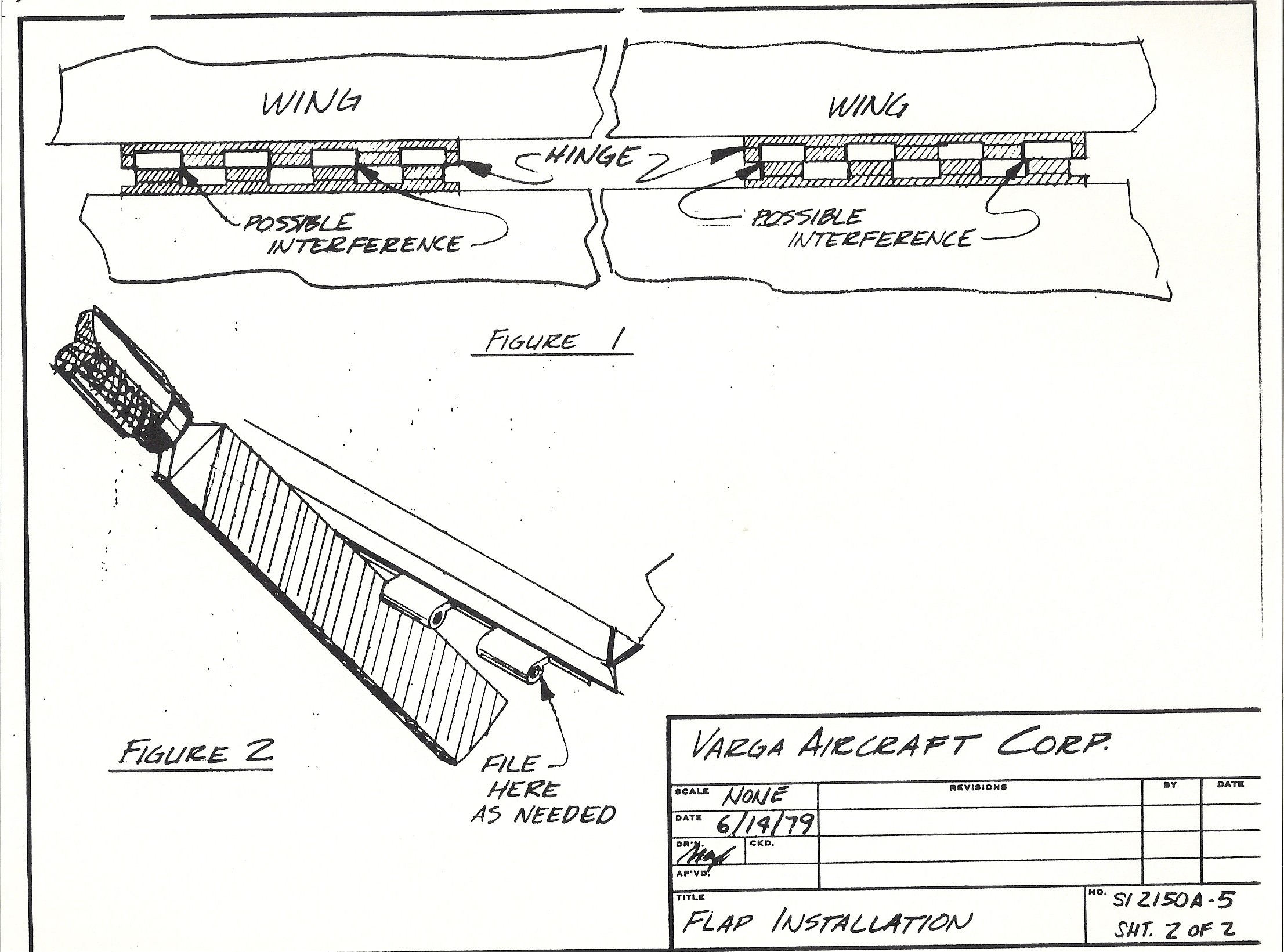

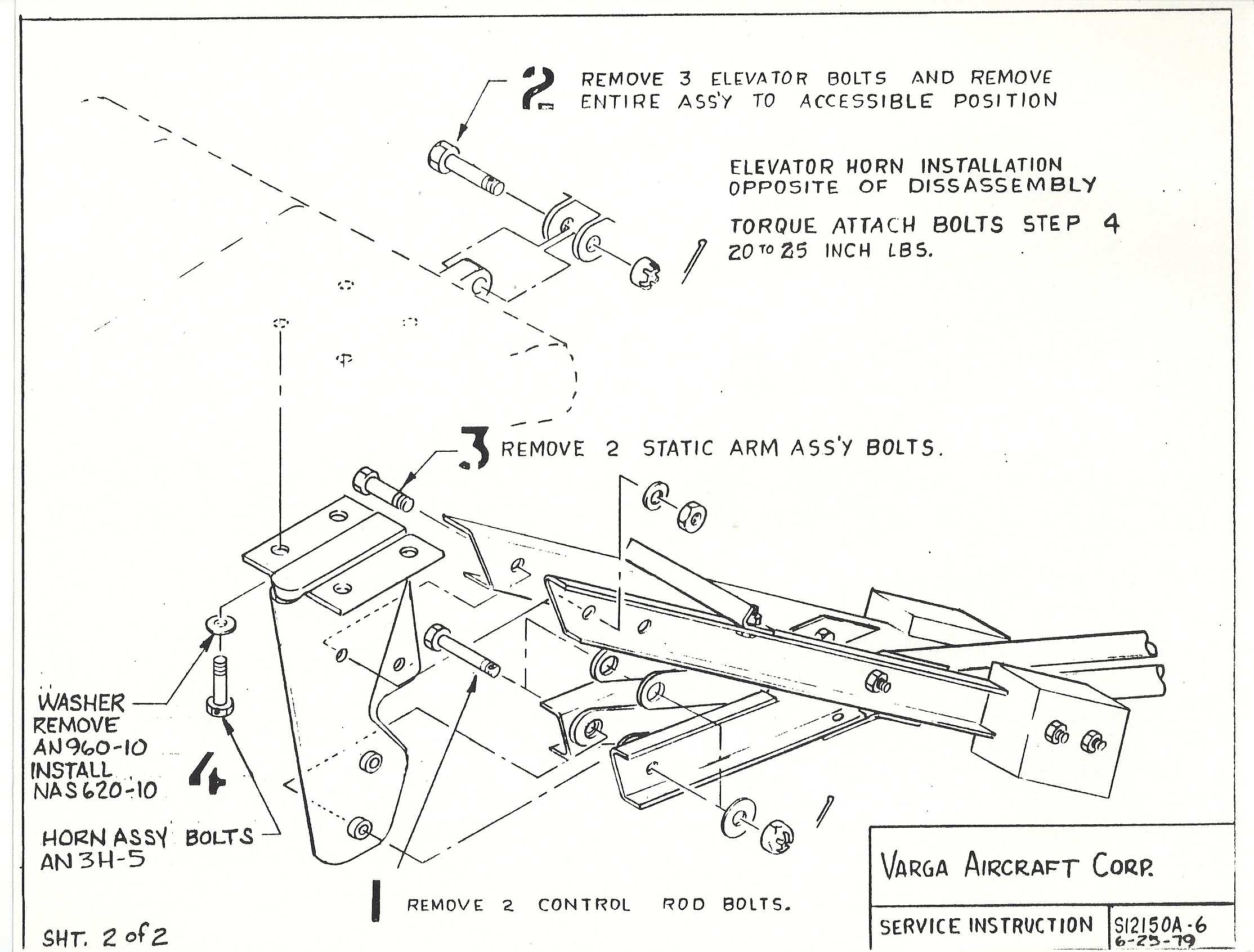

SI-2150A-6: Elevator Horn Installation for Compliance with Service Bulletin SB2150A-6

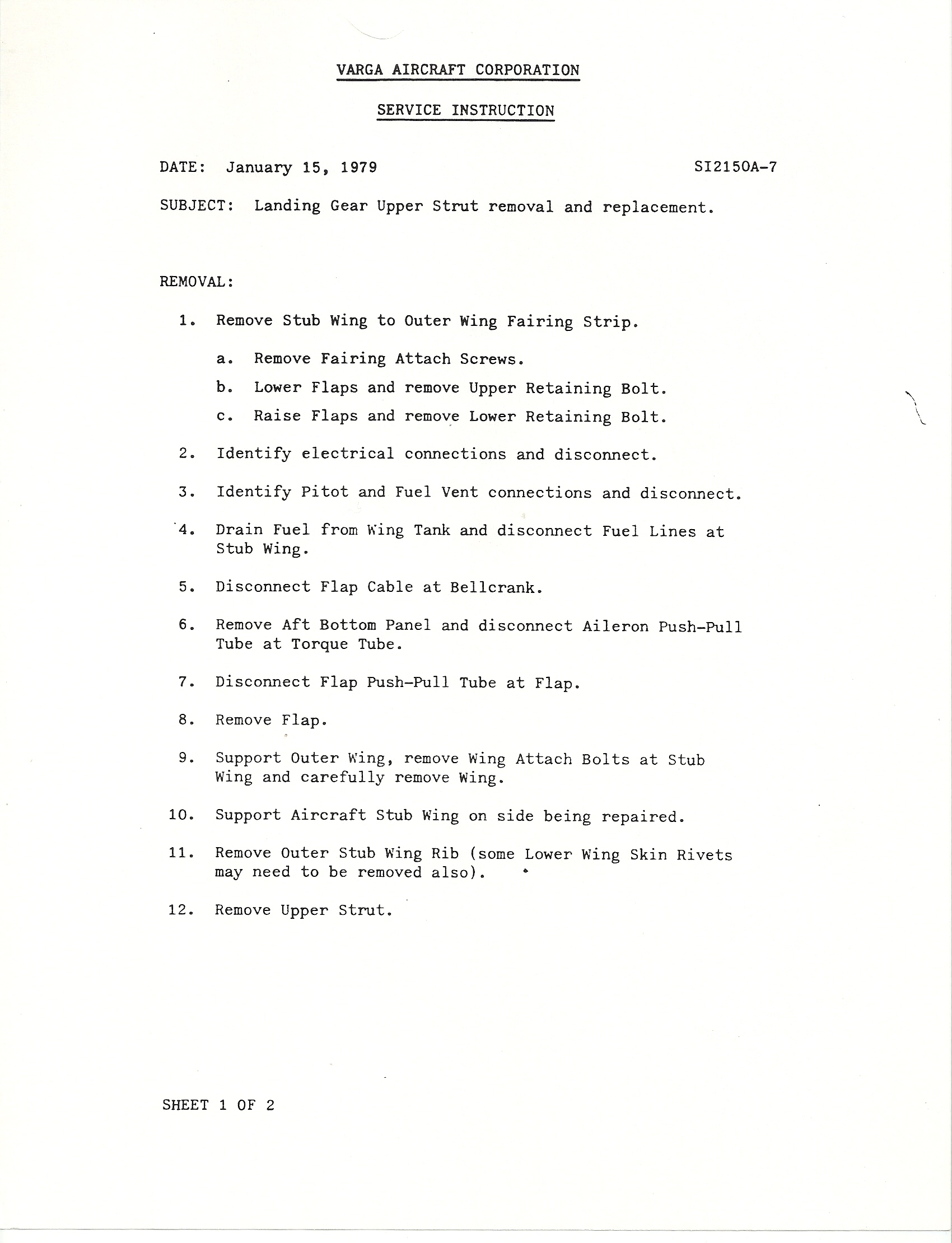

SI-2150A-7: Landing Gear Upper Strut Removal and Replacement

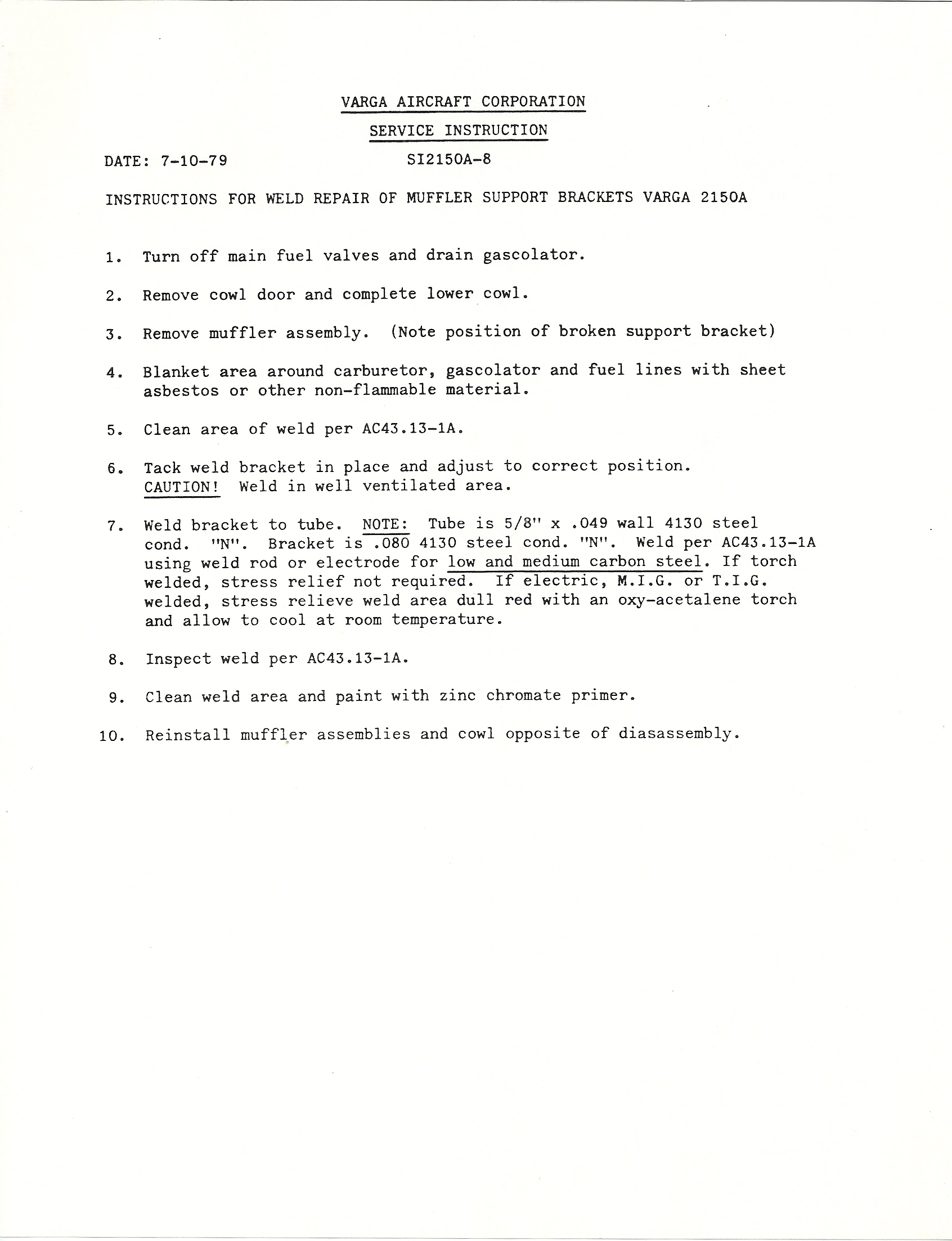

SI-2150A-8: Instructions for Weld Repair of Muffler Support Brackets Varga 2150A

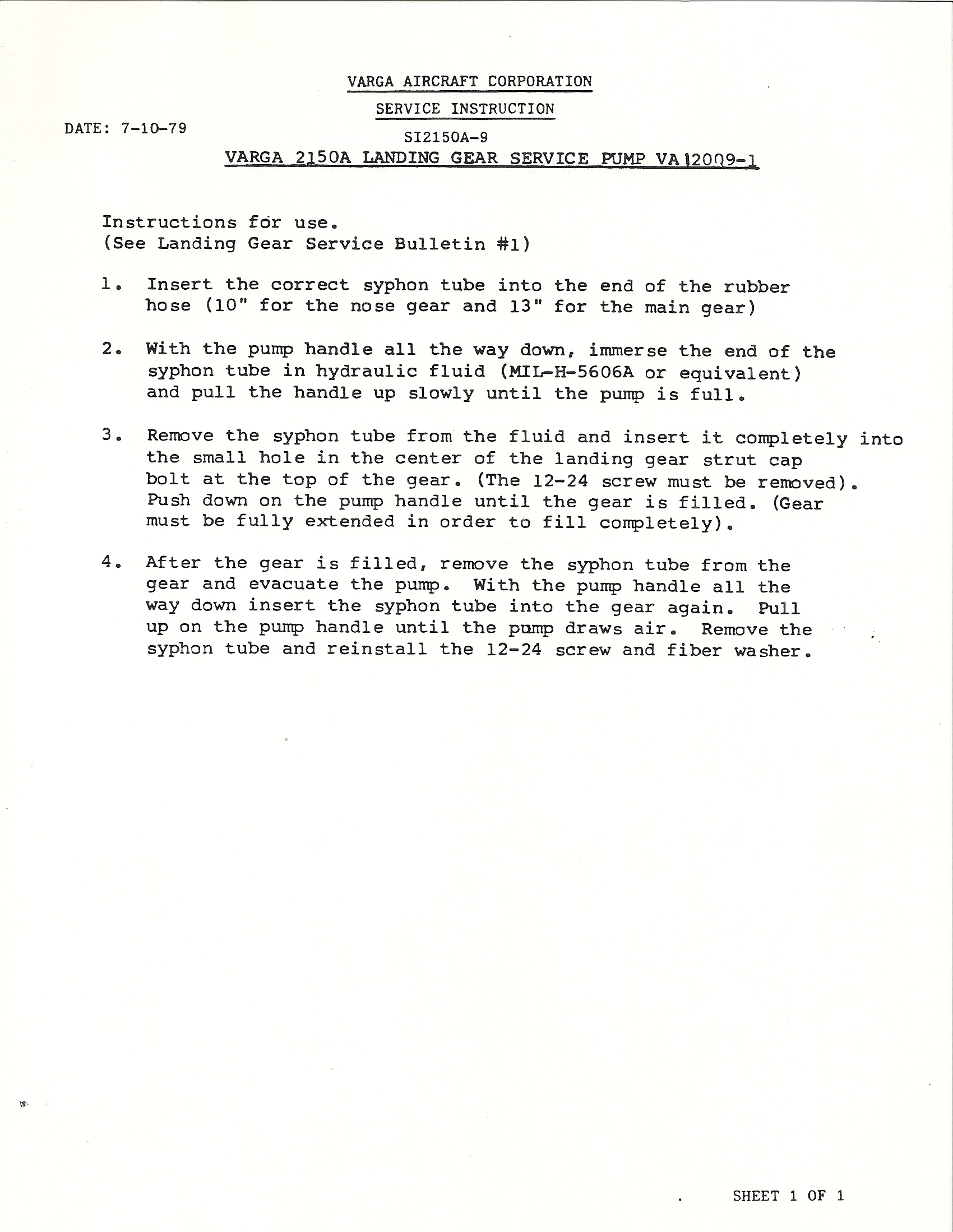

SI-2150A-9: Varga 2150A Landing Gear Service Pump VA12009-1

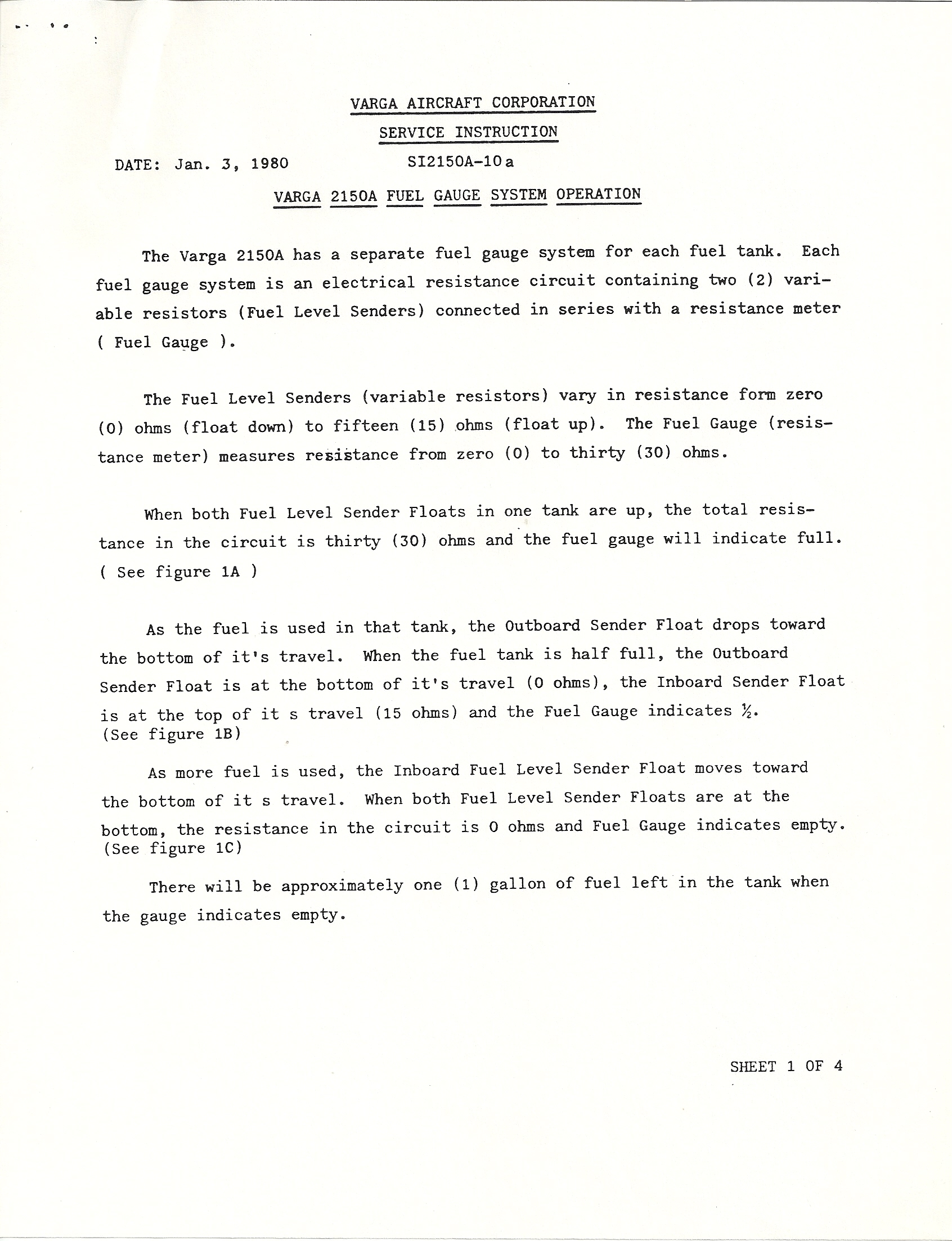

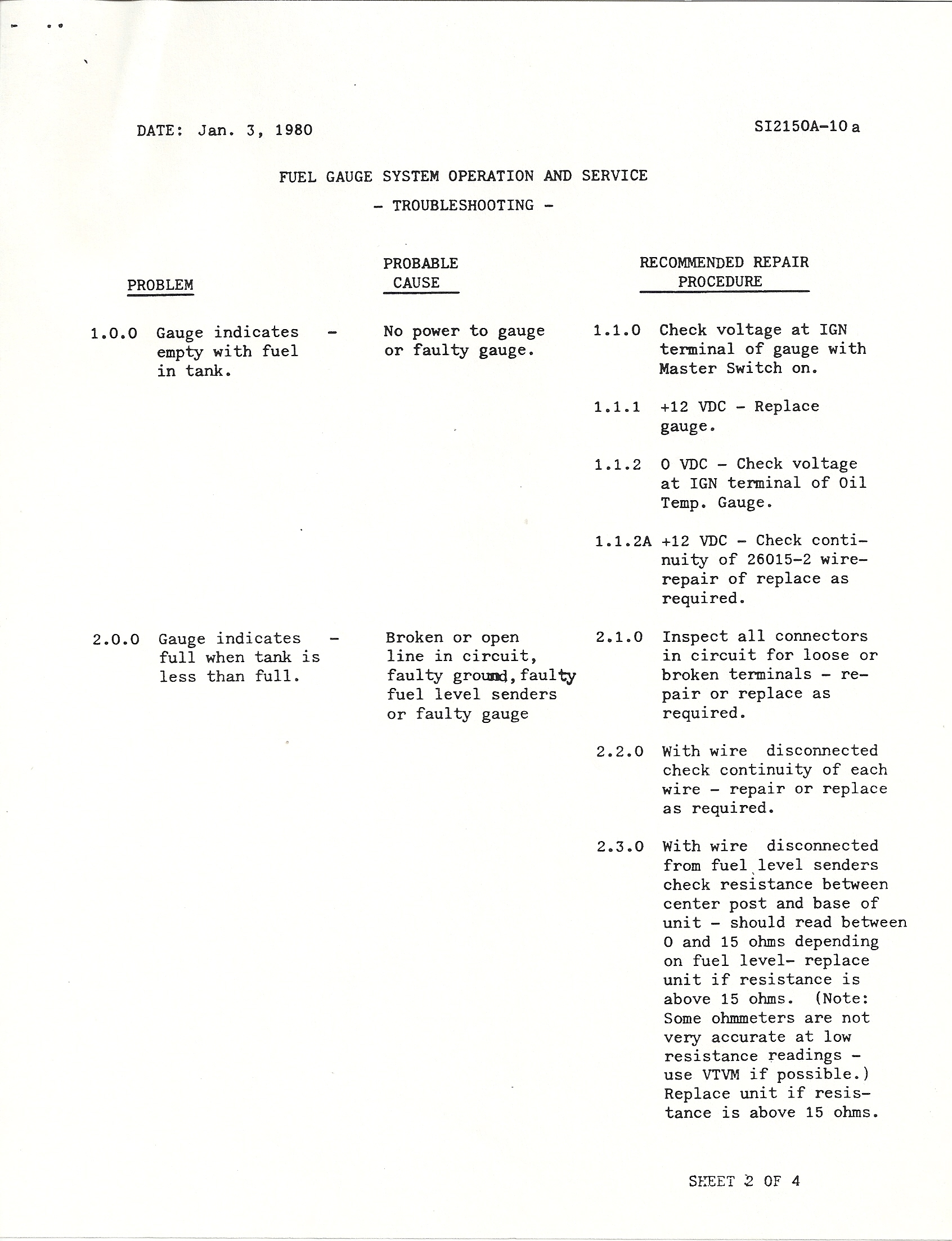

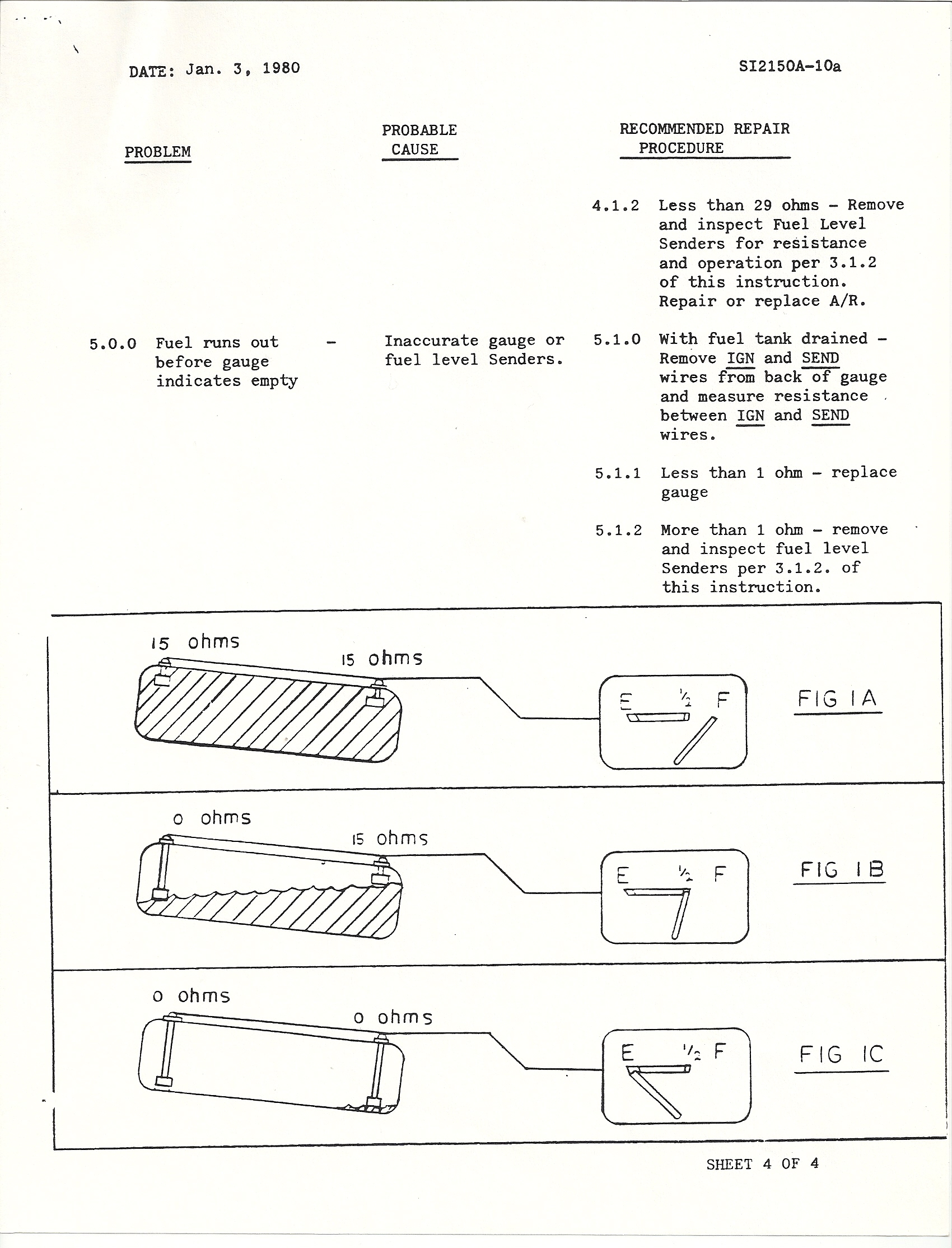

SI-2150A-10a: Varga 2150A Fuel Gauge System Operation

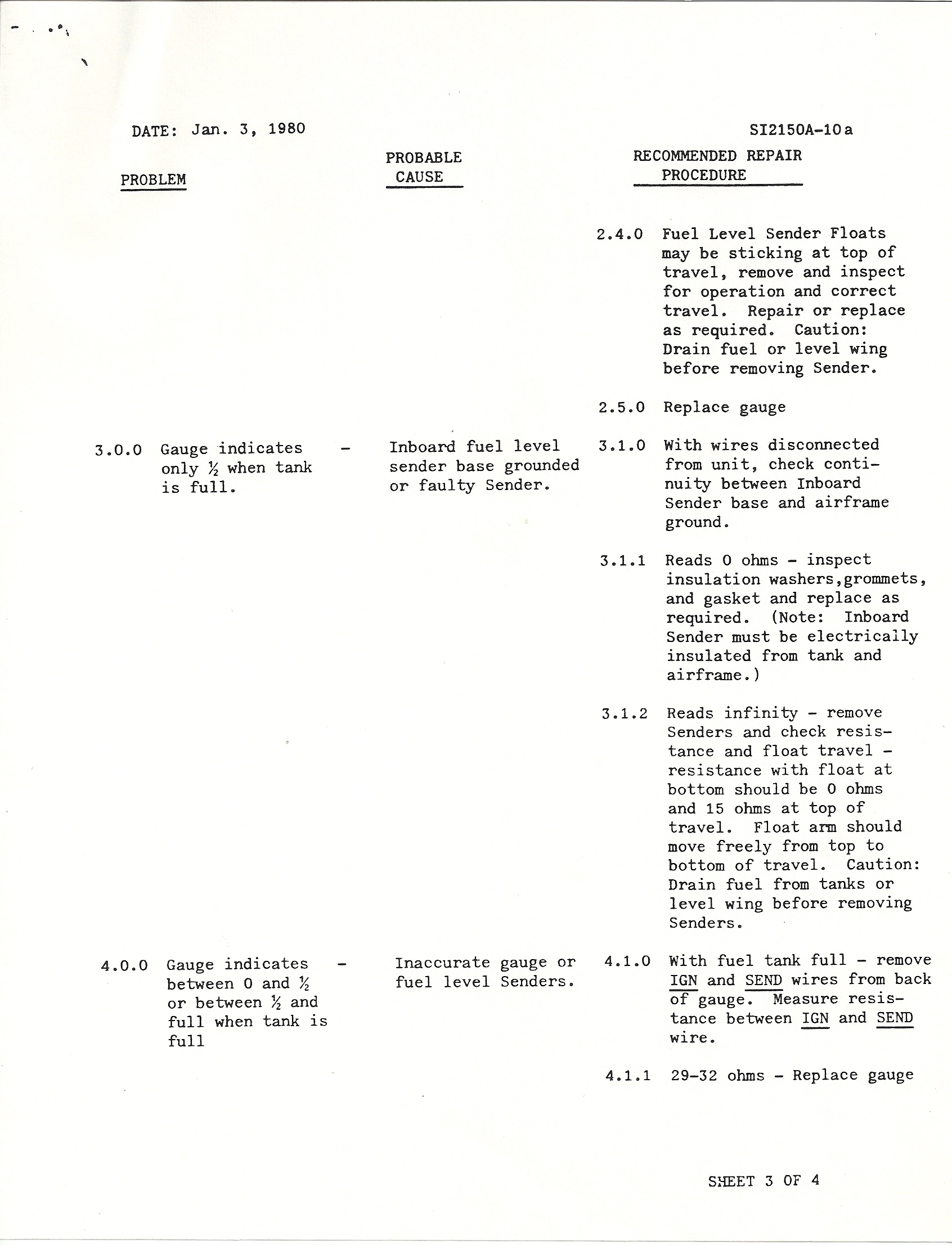

si_2150a_10_1of4.jpg (868417 bytes)   si_2150a_10a_2of4.jpg (774343 bytes)   si_2150a_10a_3of4.jpg (780712 bytes)   si_2150a_10a_4of4 .jpg (925379 bytes)

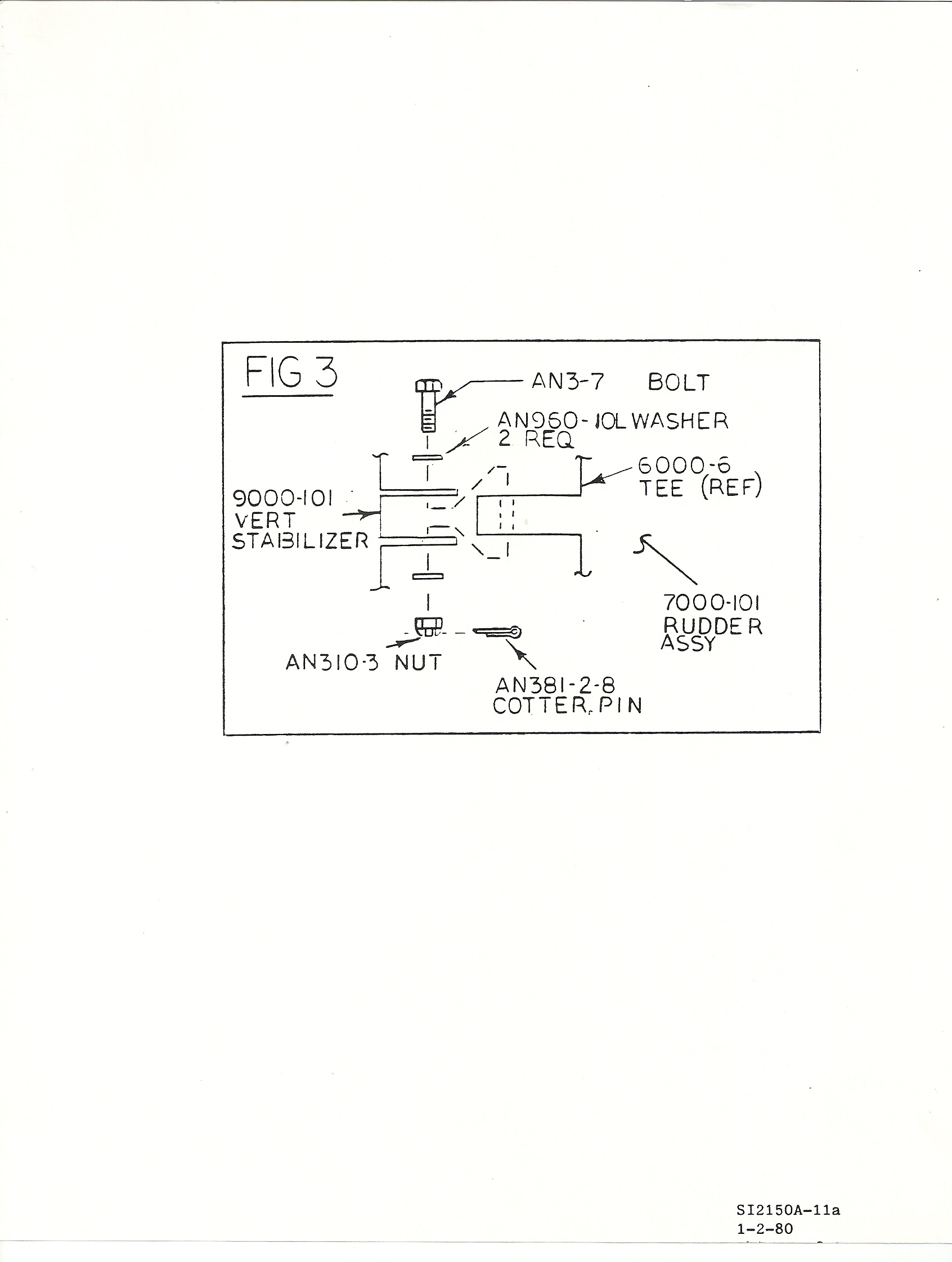

SI-2150A-11a: Rudder Removal and Installation

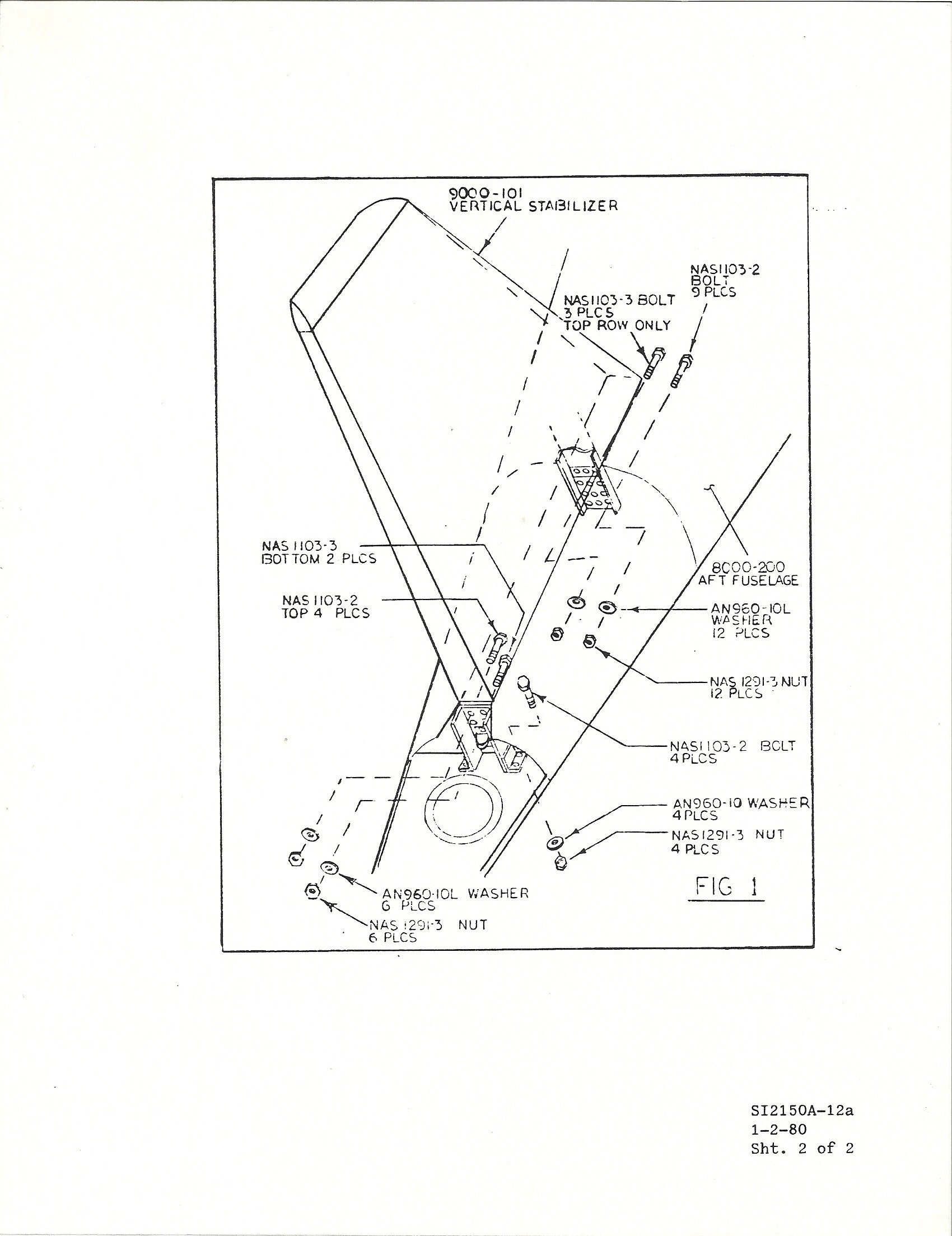

SI-2150A-12a: Vertical Stabilizer Removal and Installation

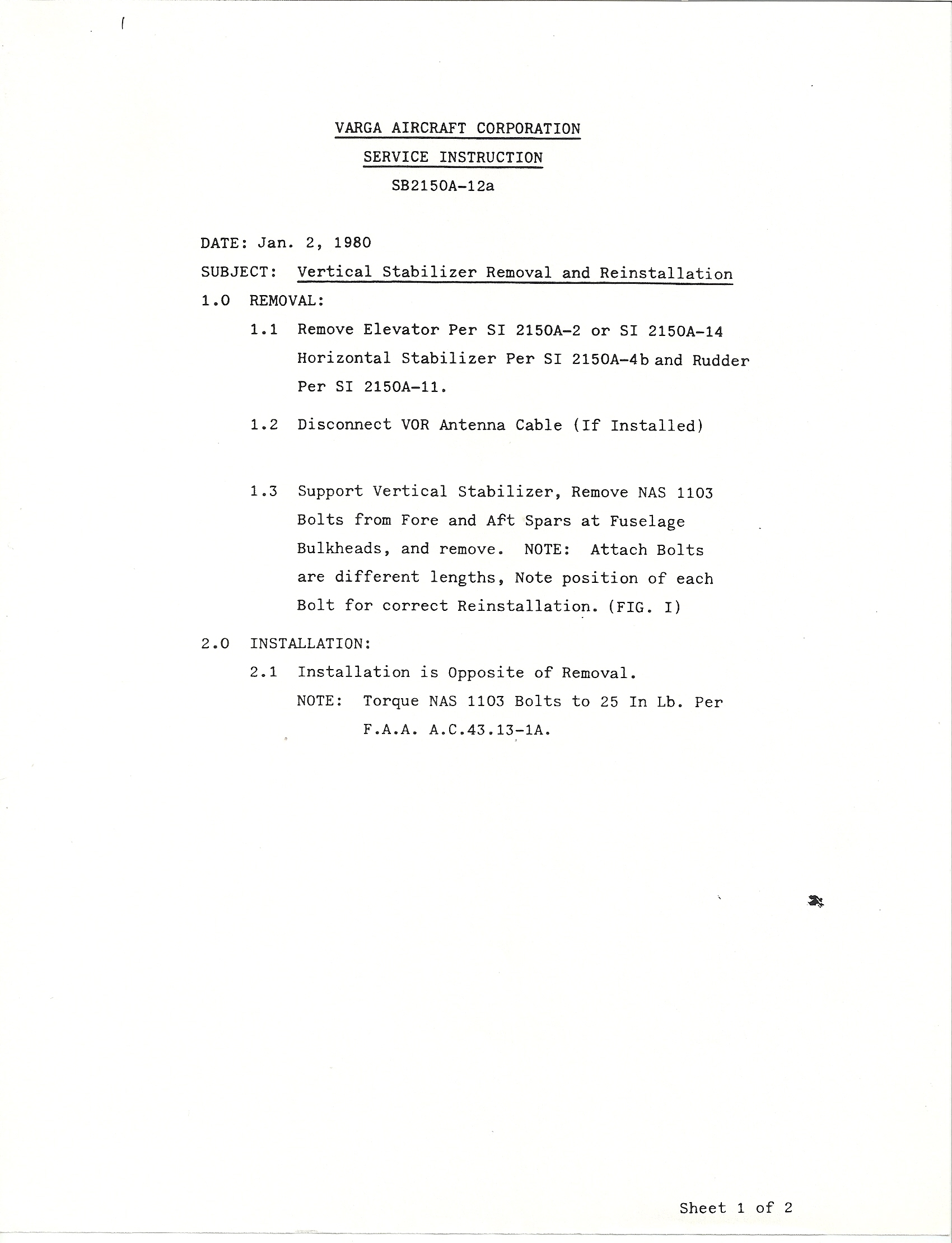

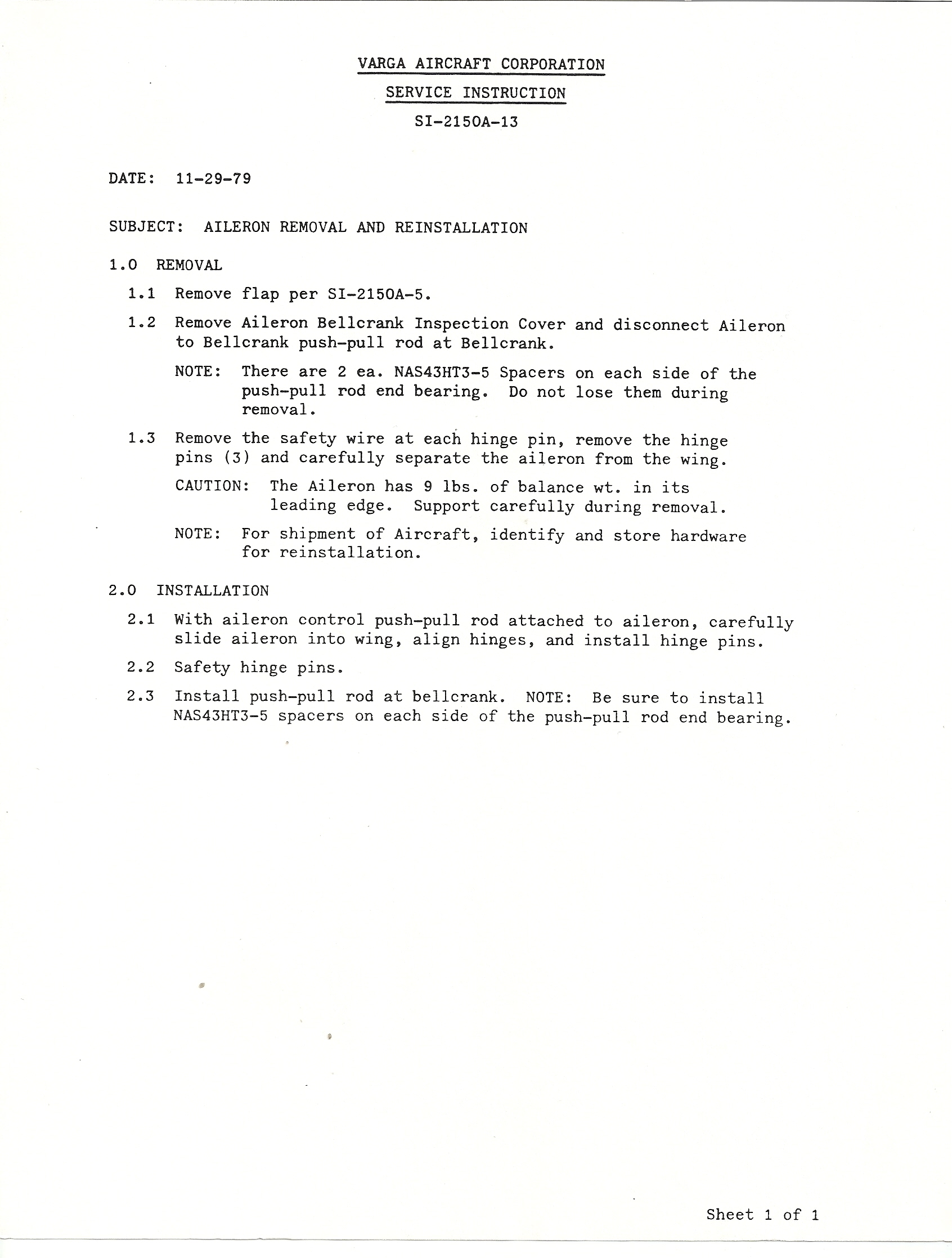

SI-2150A-13: Aileron Removal and Installation

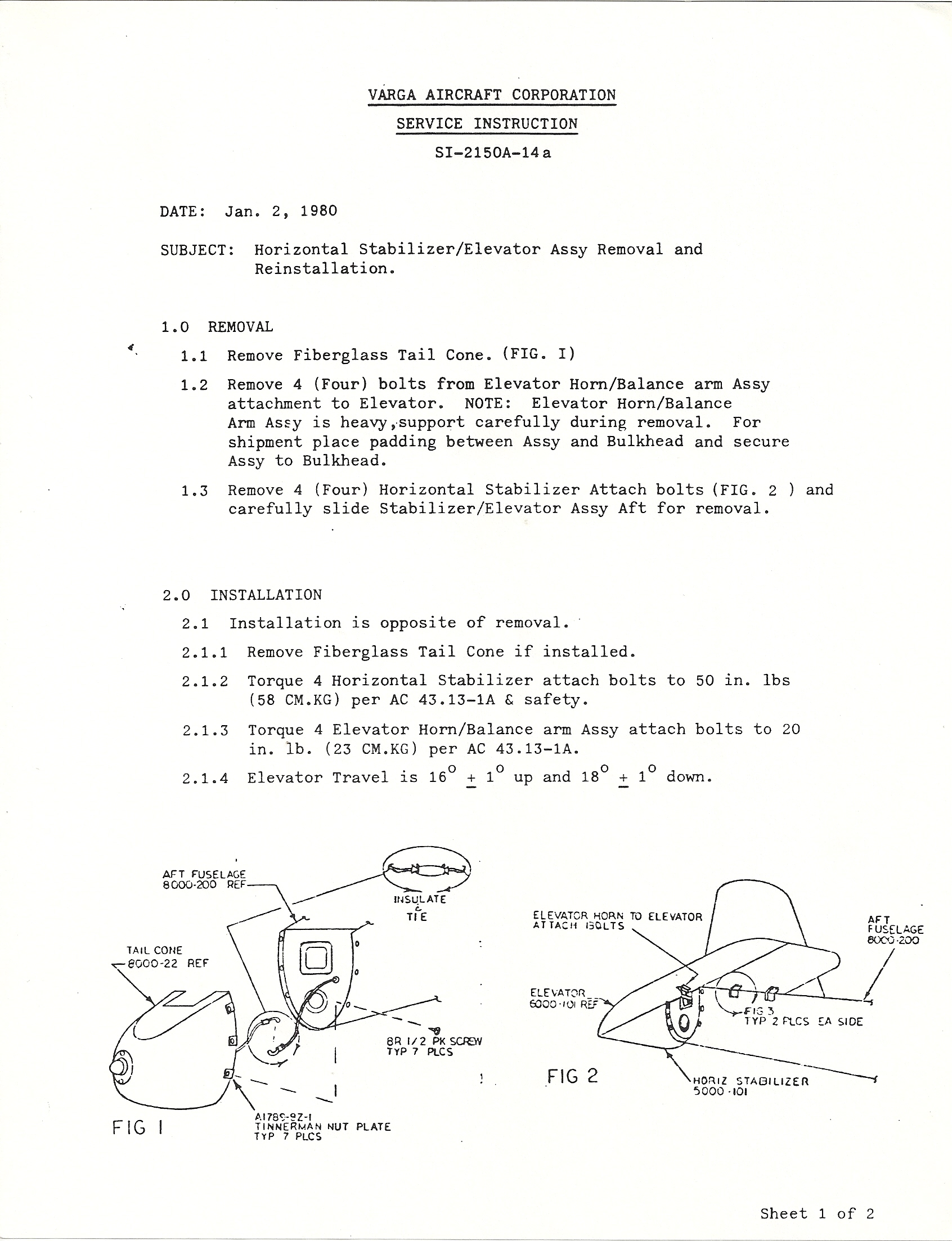

SI-2150A-14a: Horizonatal Stabilizer/Elevator Assembly Removal and Reinstallation

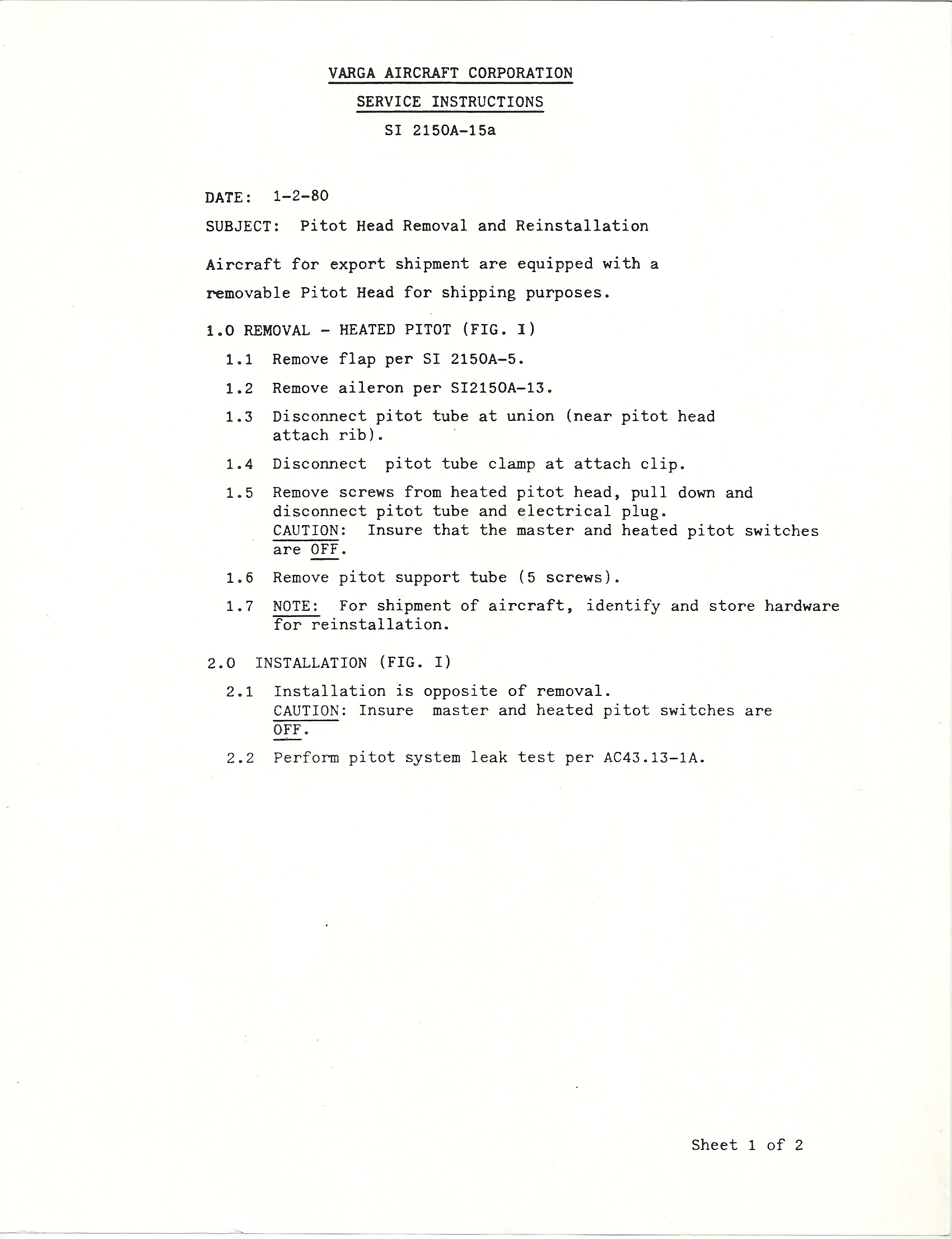

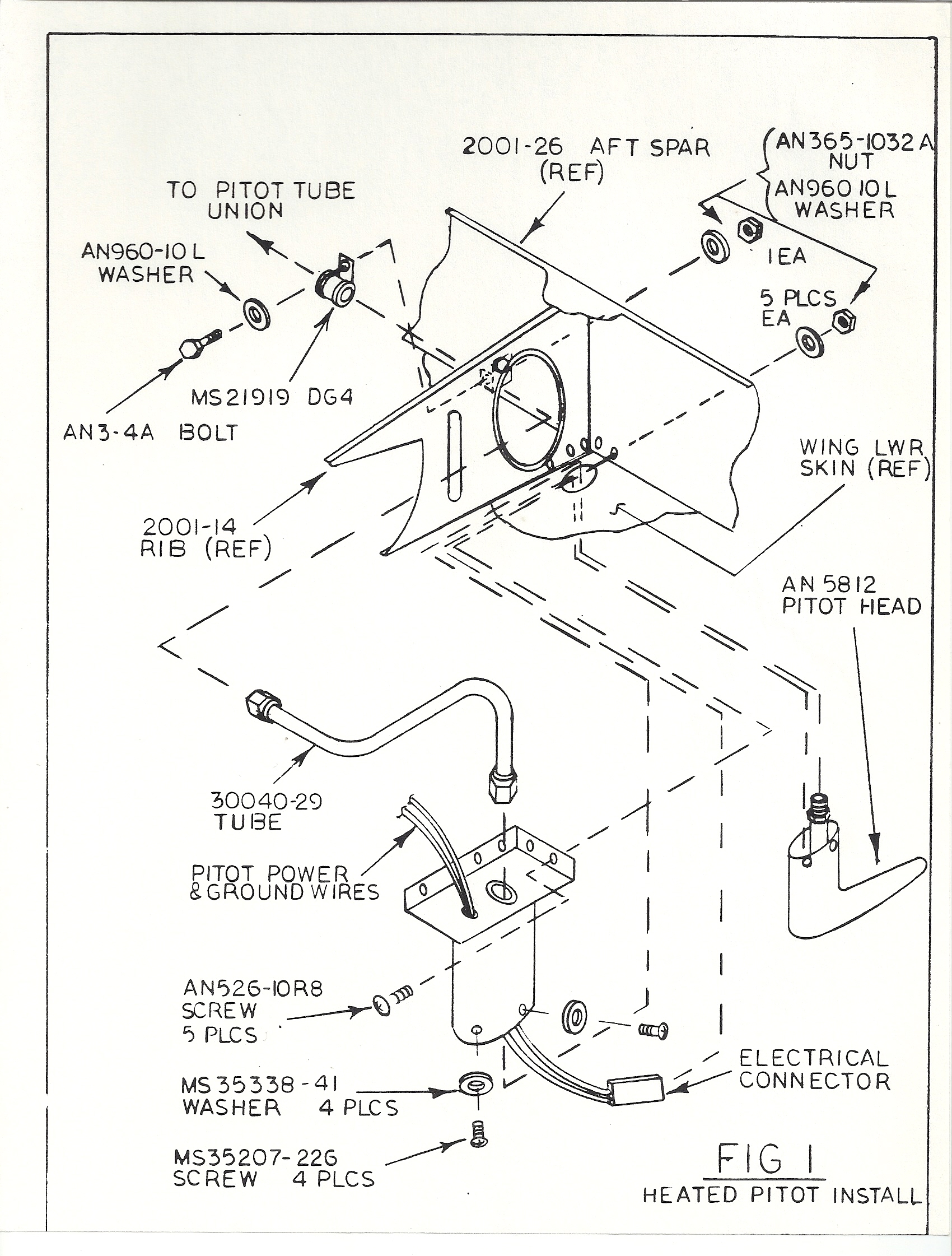

SI-2150A-15a: Pitot Head Removal and Reinstallation

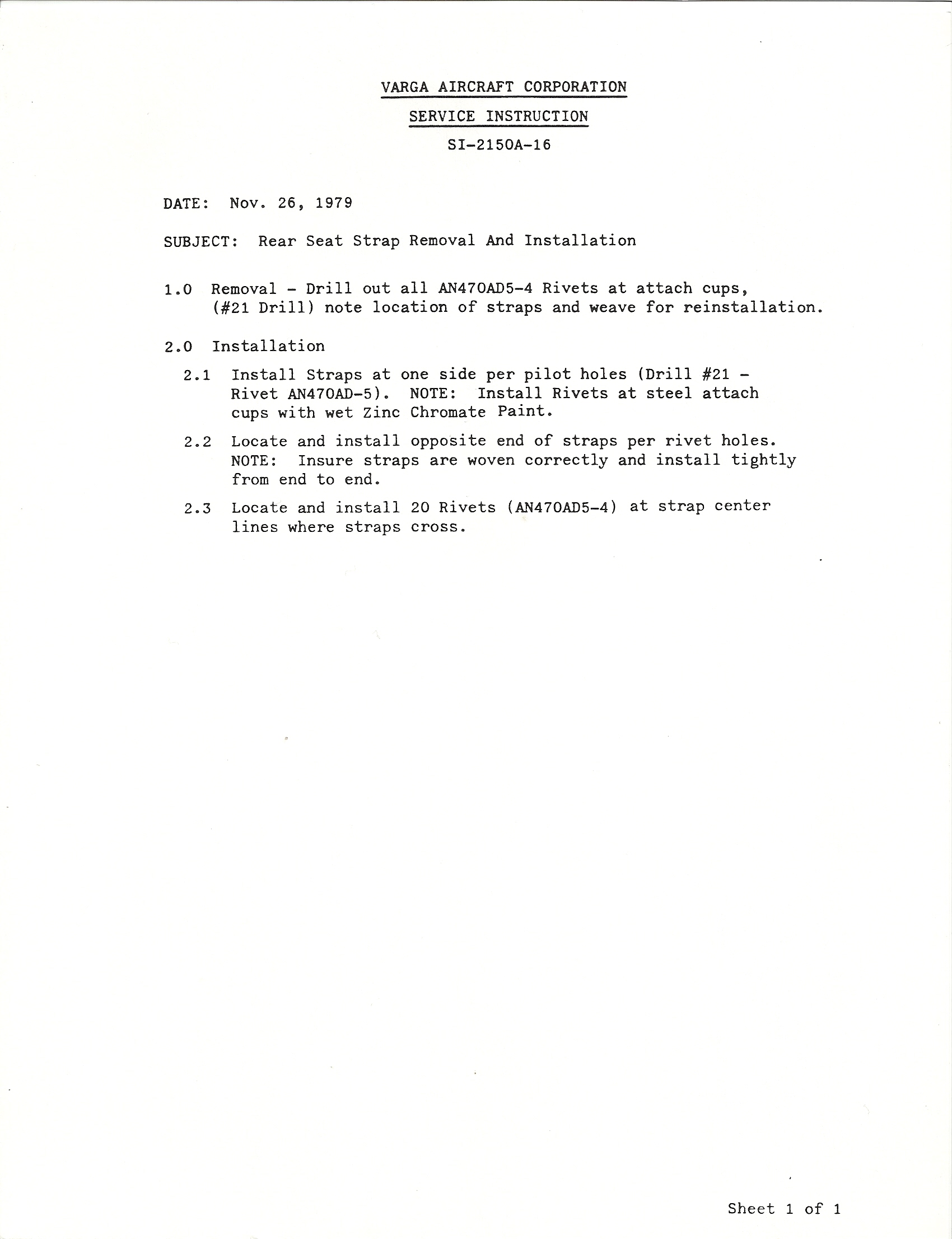

SI-2150A-16: Rear Seat Strap Removal and Reinstallation

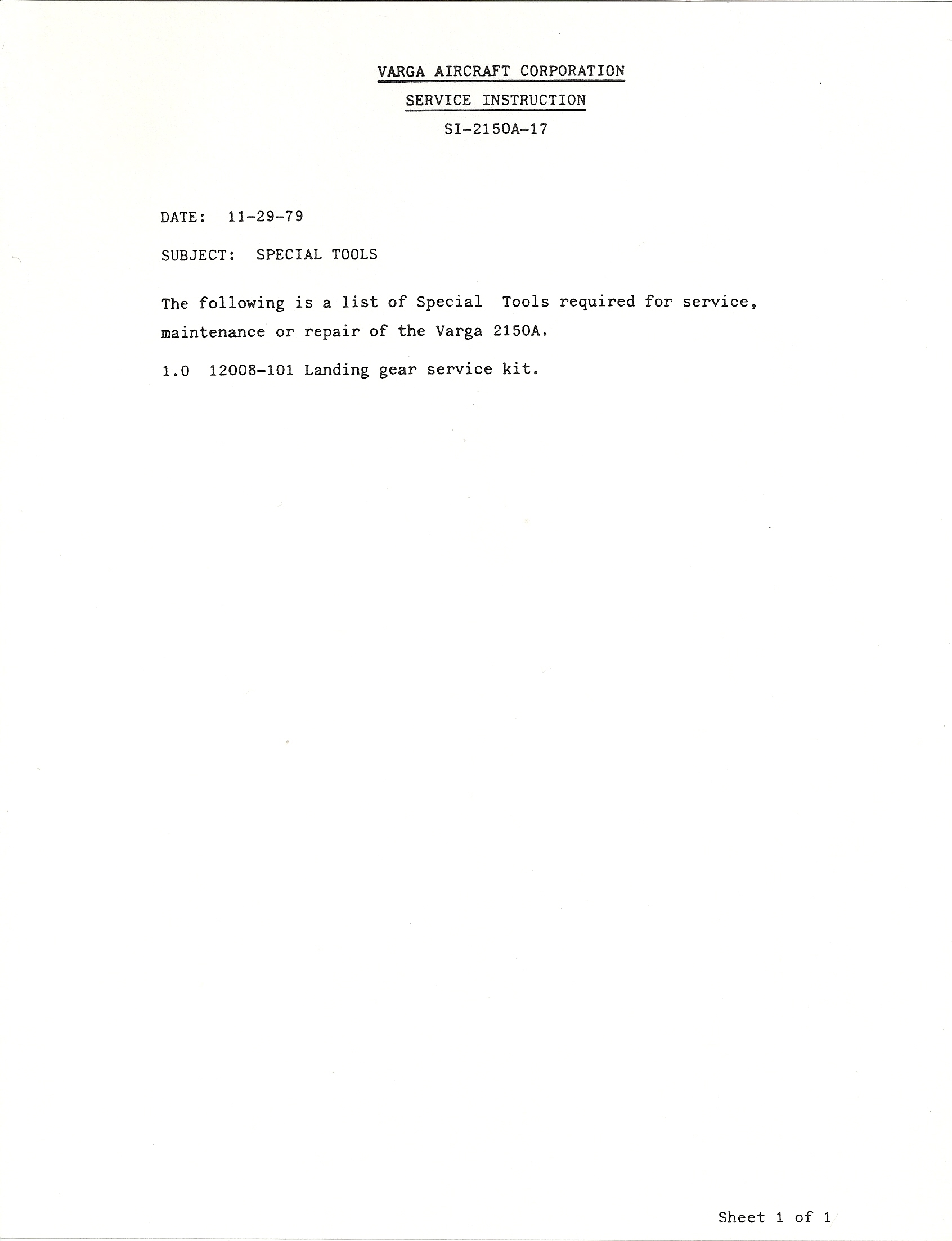

SI-2150A-17: Special Tools

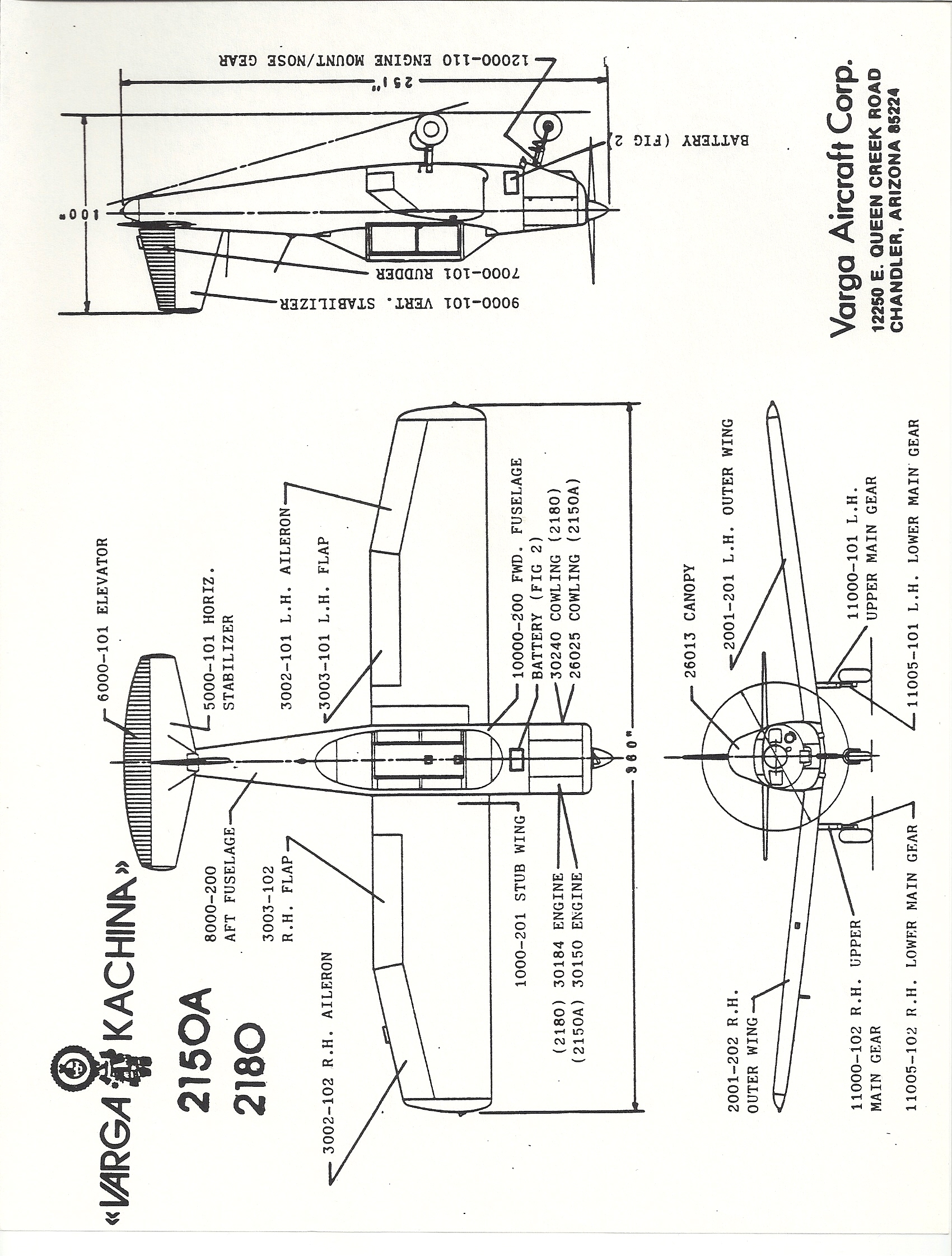

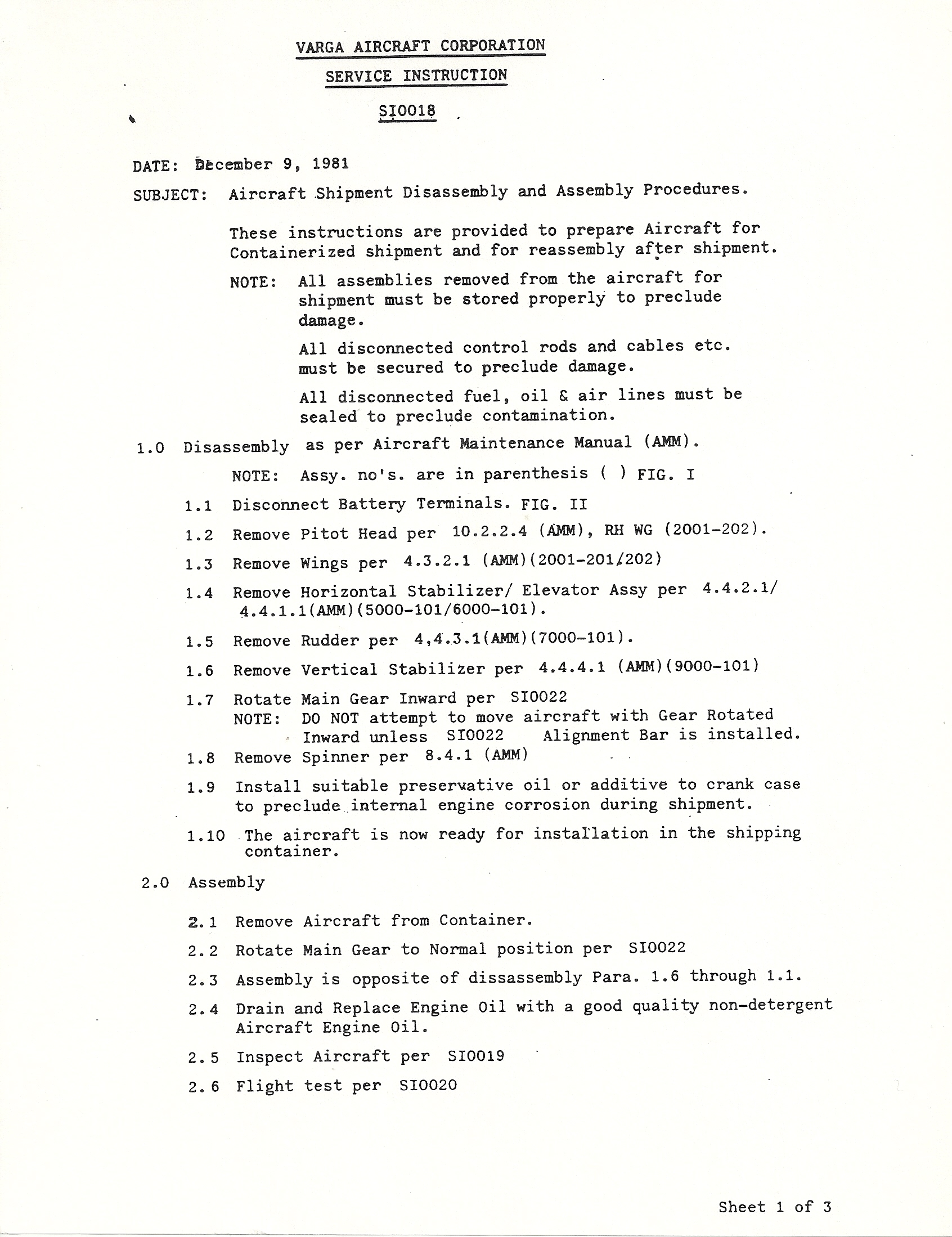

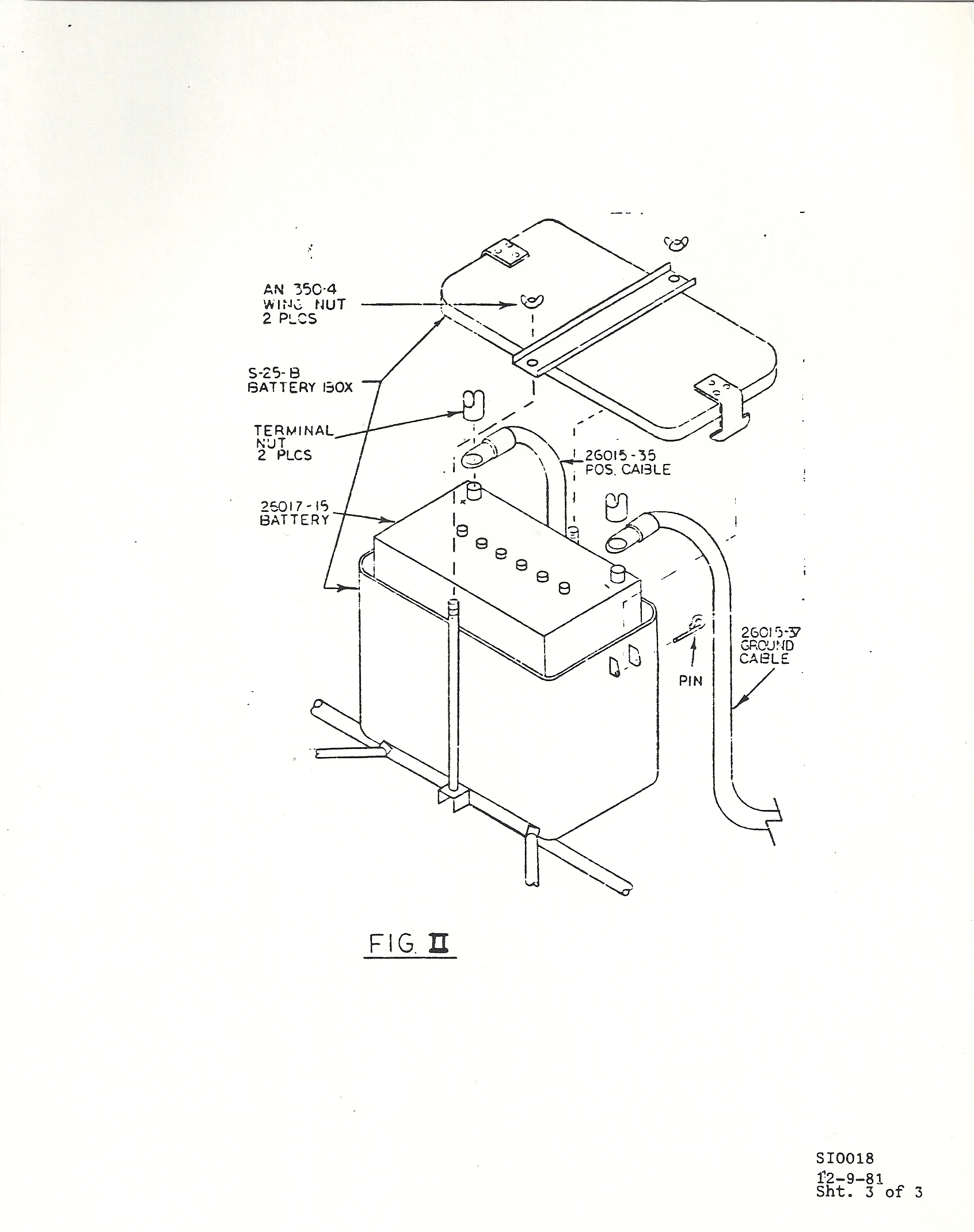

SI0018: Aircraft Shipment Disassembly and Assembly Procedures

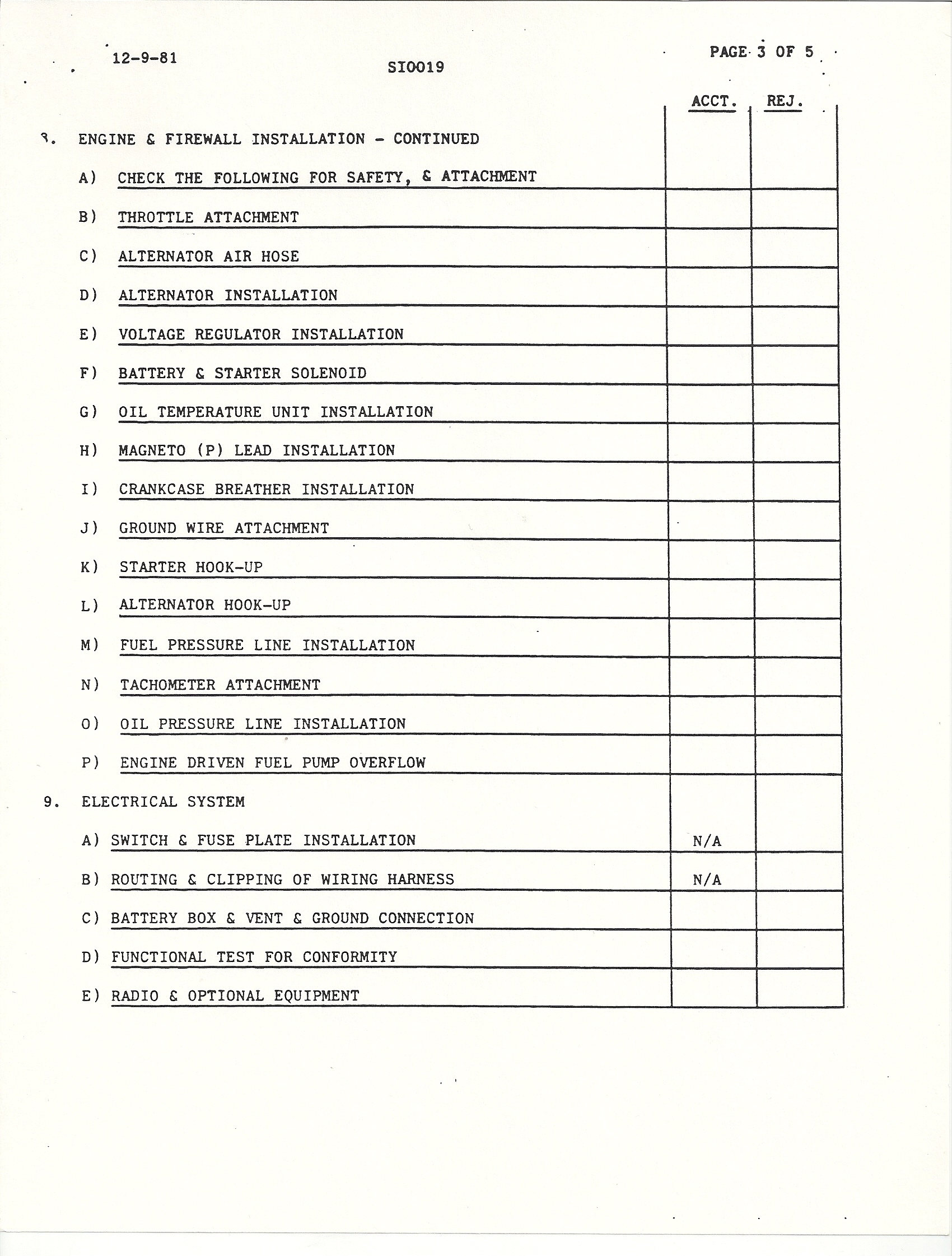

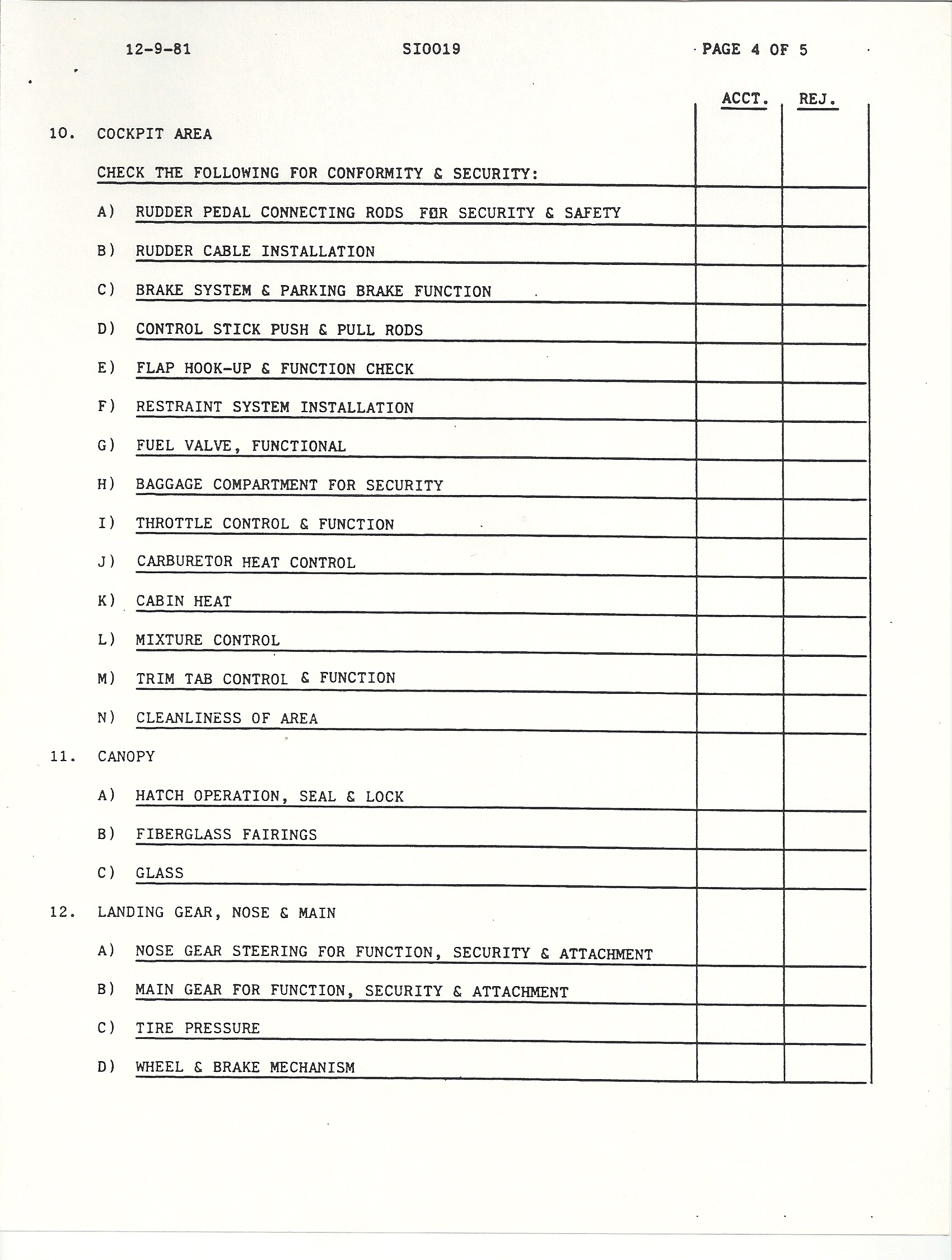

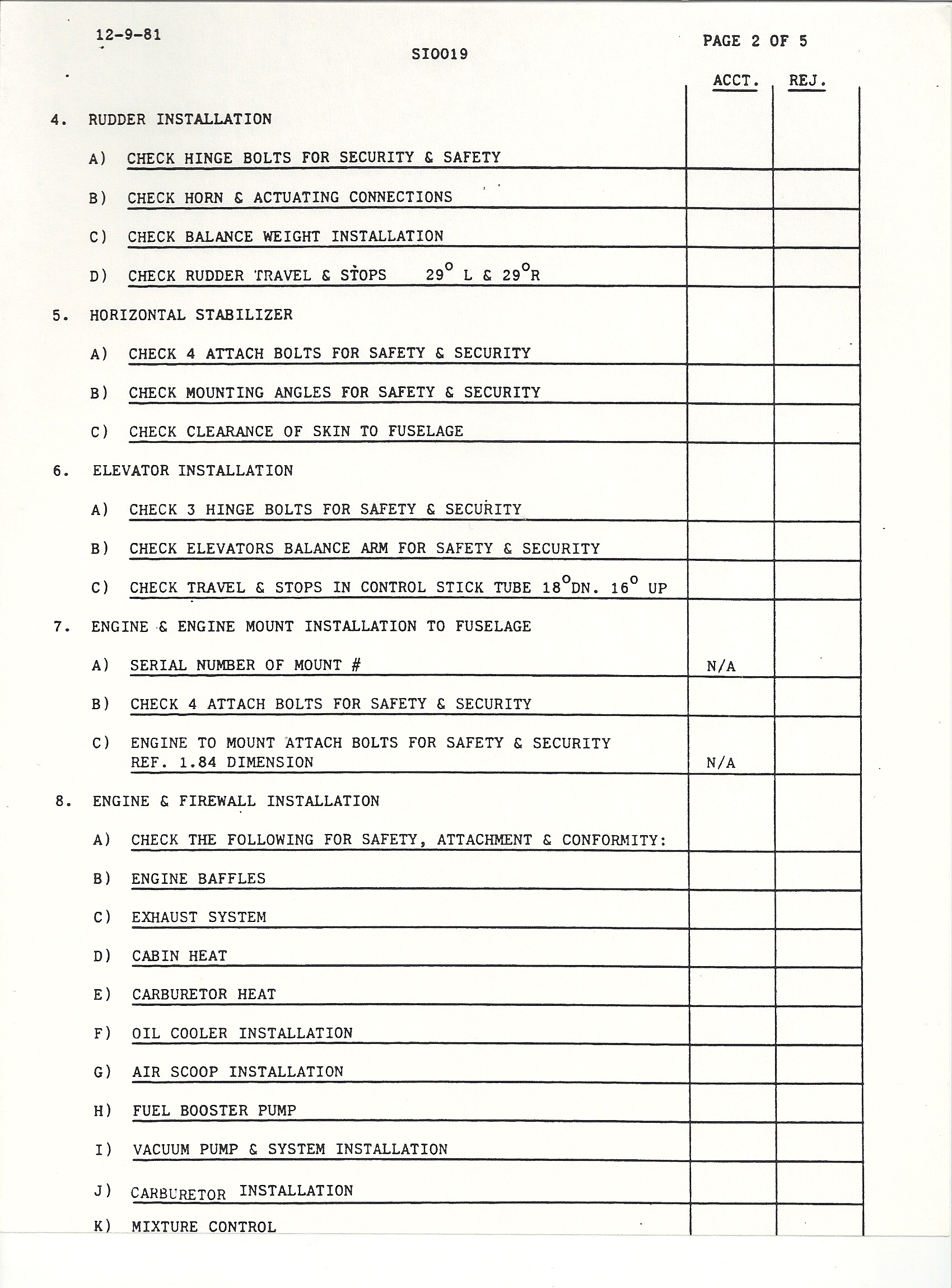

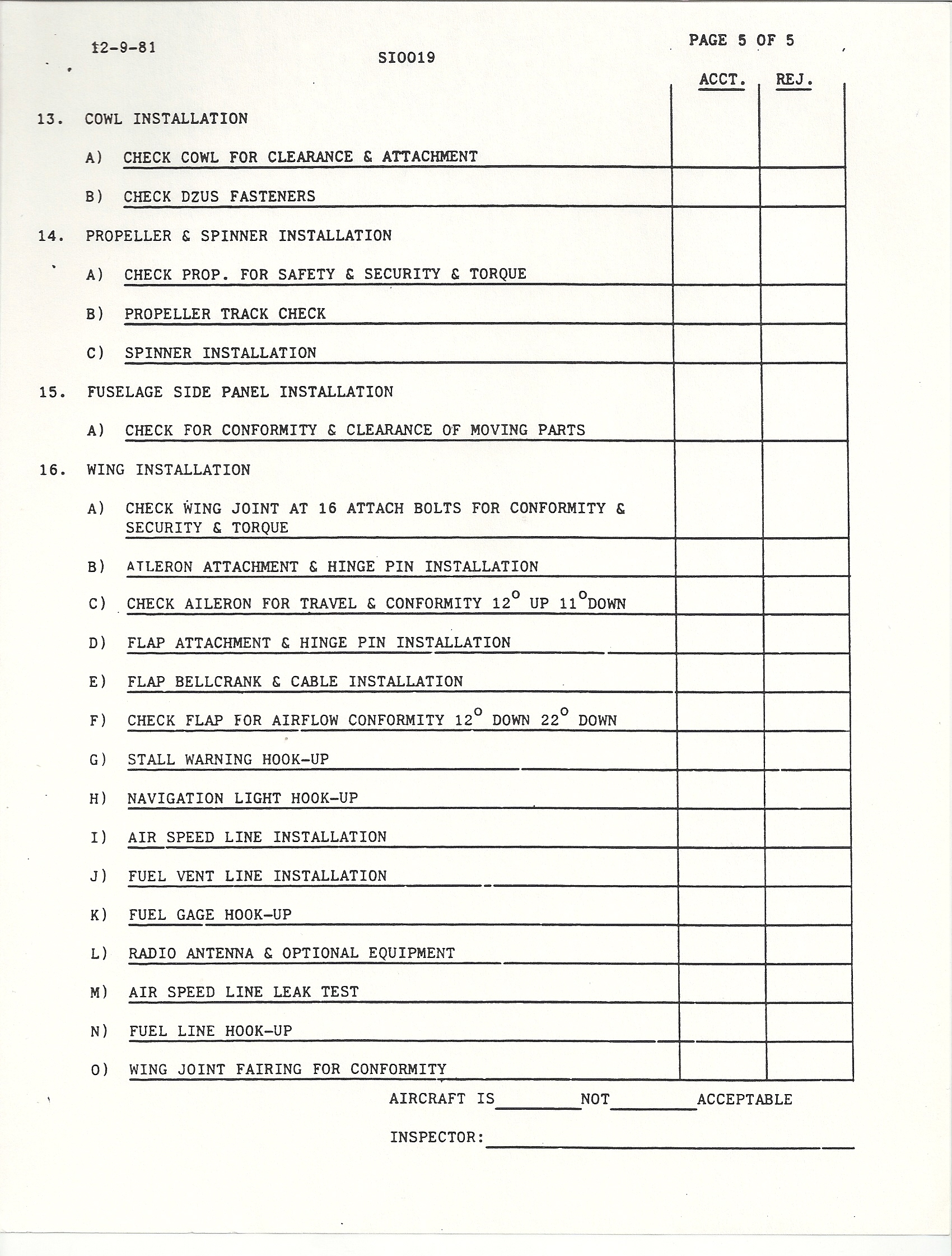

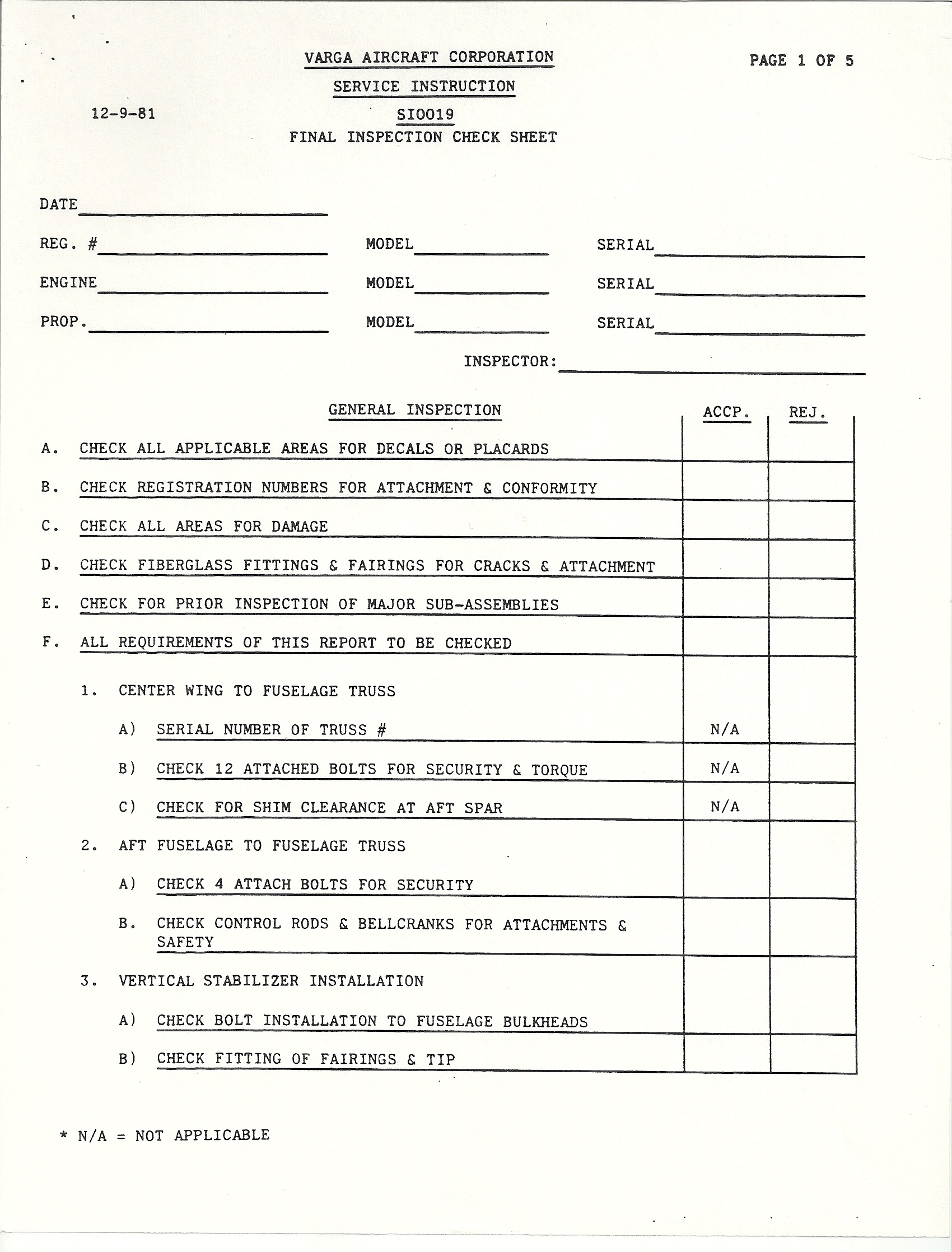

SI0019: Final Inspection Check Sheet

si0019_1of5.jpg (1196940 bytes)   si0019_2of5.jpg (1469134 bytes)   si0019_3of5.jpg (1211341 bytes)   si0019_4of5.jpg (1232640 bytes)   si0019_5of5.jpg (1469653 bytes)

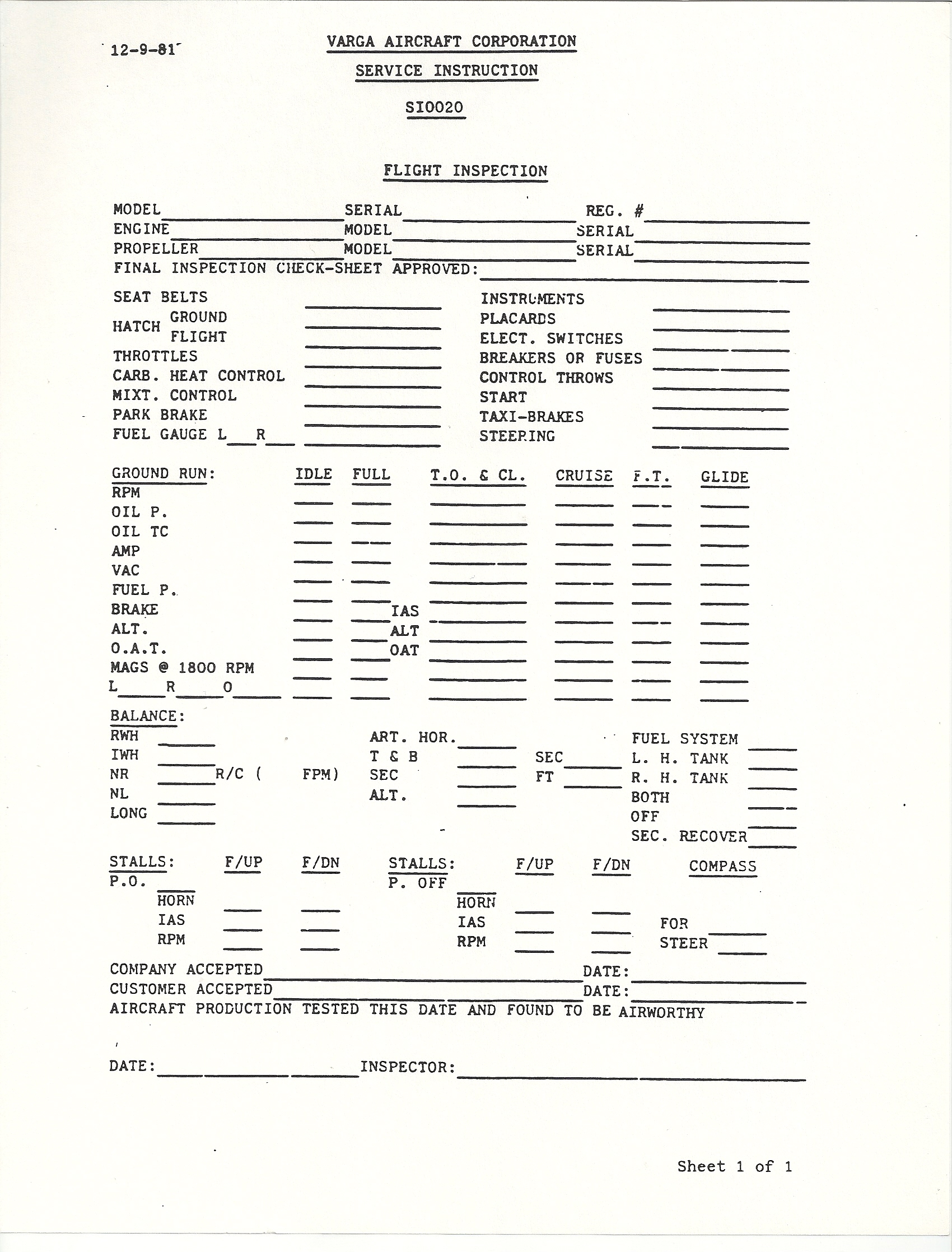

SI0020: Flight Inspection

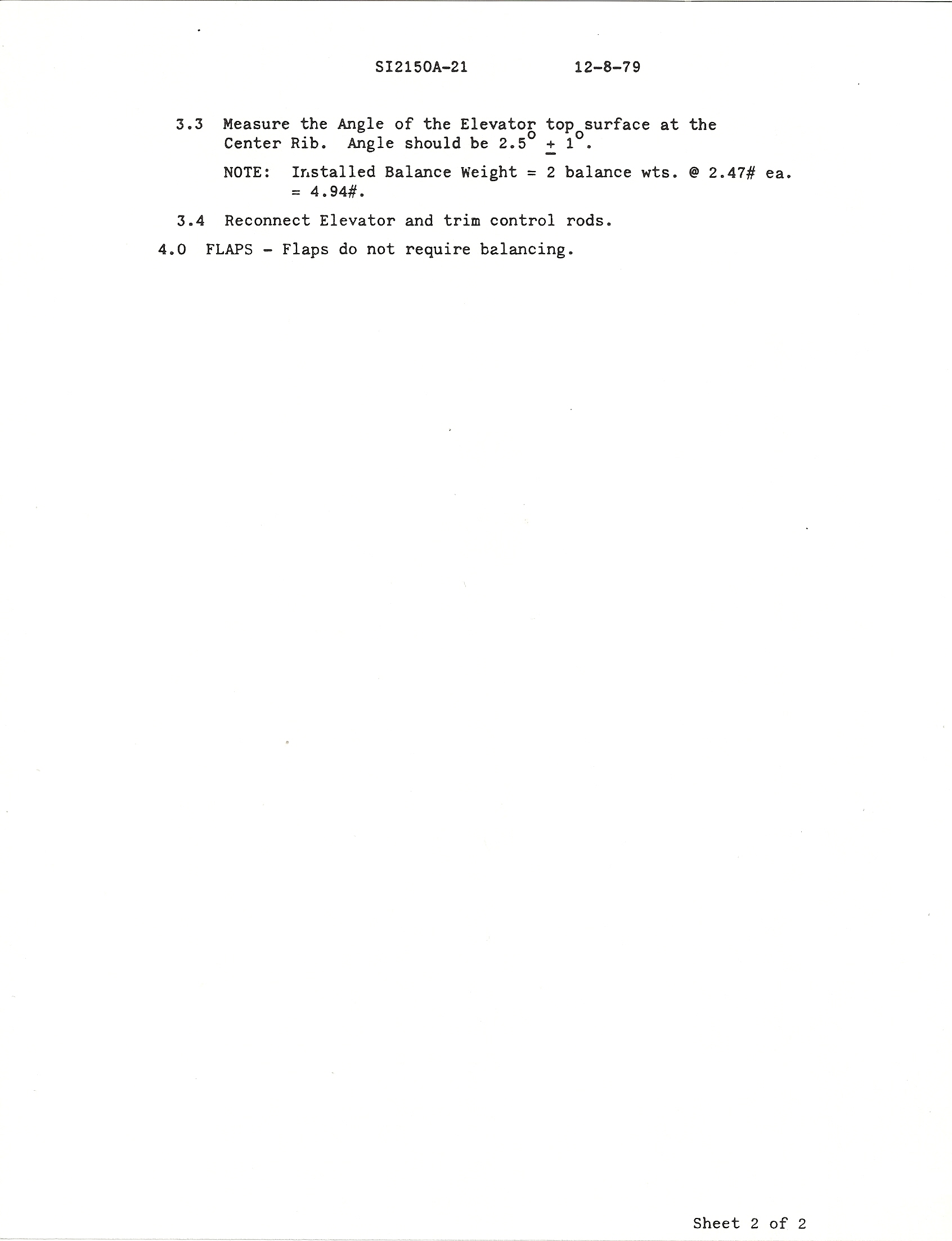

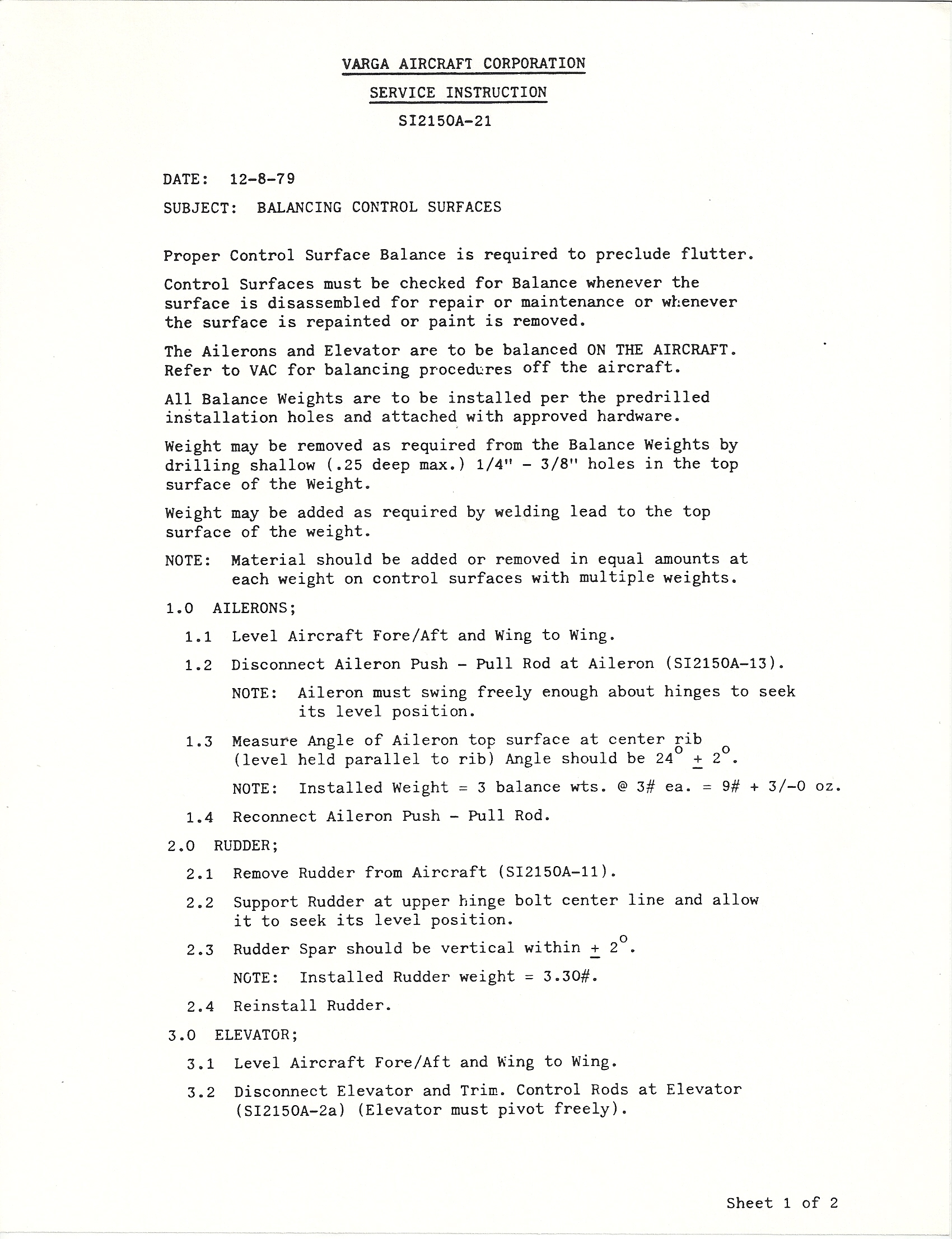

SI-2150A-21: Balancing Control Surfaces
